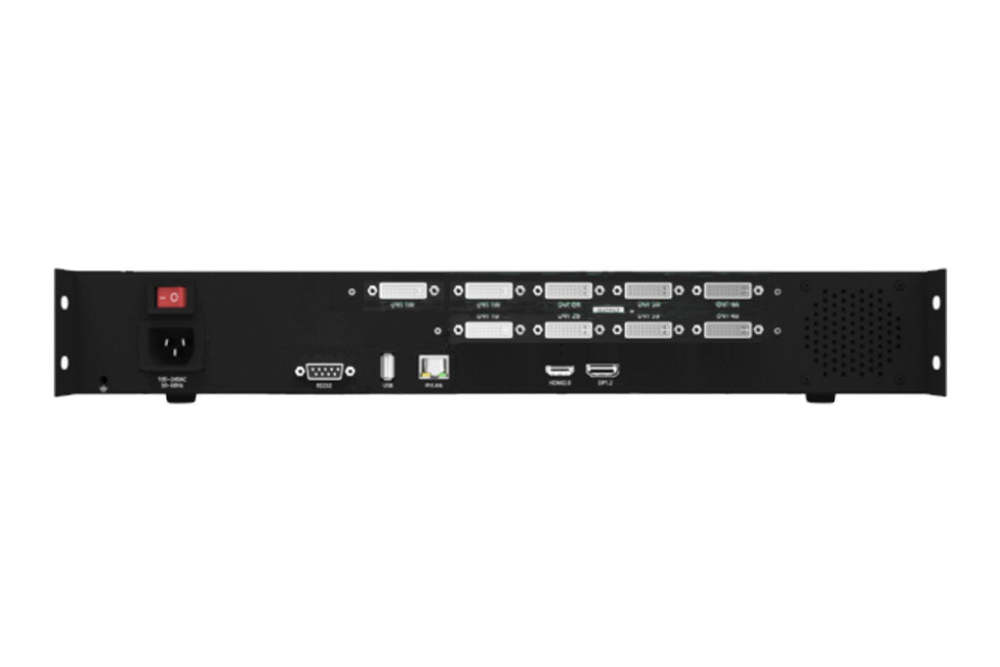

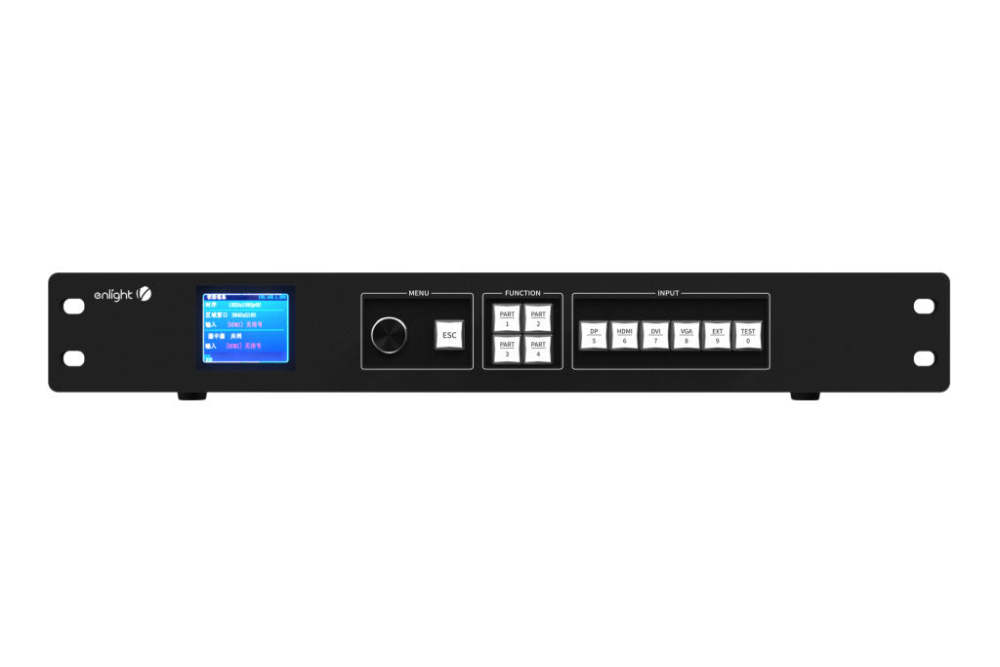

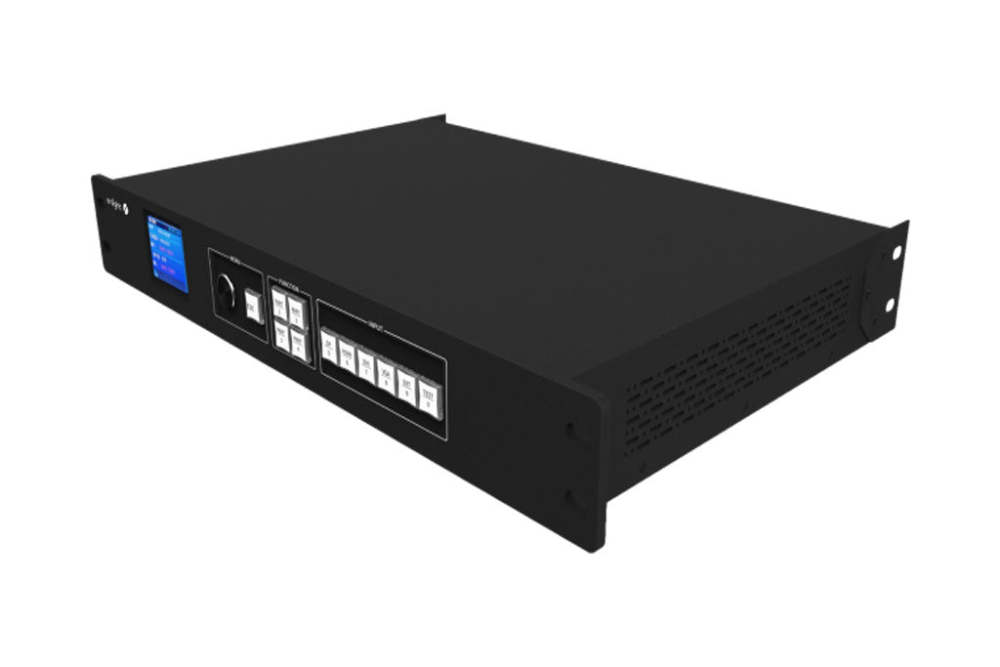

The Multi-screen extender H14 is a 4K60Hz video processor based on leading 4K image processing technology for signal distribution or image segmentation.
- Low-latency 4K video processing algorithm
- Custom input and output resolution
- SourceLock synchronization technology, supports synchronization of multiple devices
- Support 3840x2160@60 or 7680x1080@60 input and output
- Support analog audio input and output
- Distributor mode (1 input and 9/18 output)
Multiple Display Segmentation Modes
●Crisscross segmentation
●horizont segmentation
●vertical segmentation
Broadcast Control System
Distributor Mode
Technical Specification
Video Input
VGA 1 channel VESA standard，PC to 1920x1200
DVI 1 channel VESA standard，PC to 1920x1200
HDMI 1 channel EIA/CEA-861 standard，4K@60 HDMI2.0Downward compatible Customizable
DP 1 channel VESA standard，4K@60 DP1.2Downward compatible Customizable
SDI(Optional) 1 channel 1080p60,3G Downward compatible Loop output
Video Output
resolution ratio 1920x1080@60Hz，1920x1080@50Hz，1920x1200@60Hz，1920x1200@50Hz
DVI-I 4 channel EIA/CEA-861 standard
Equipment parameters
weight:4.5KG
size:483（length）x320（width）x67（height）MM
Power Supply:100V~240V AC 50~60Hz
Power:35W
working temperature:0℃~45℃
