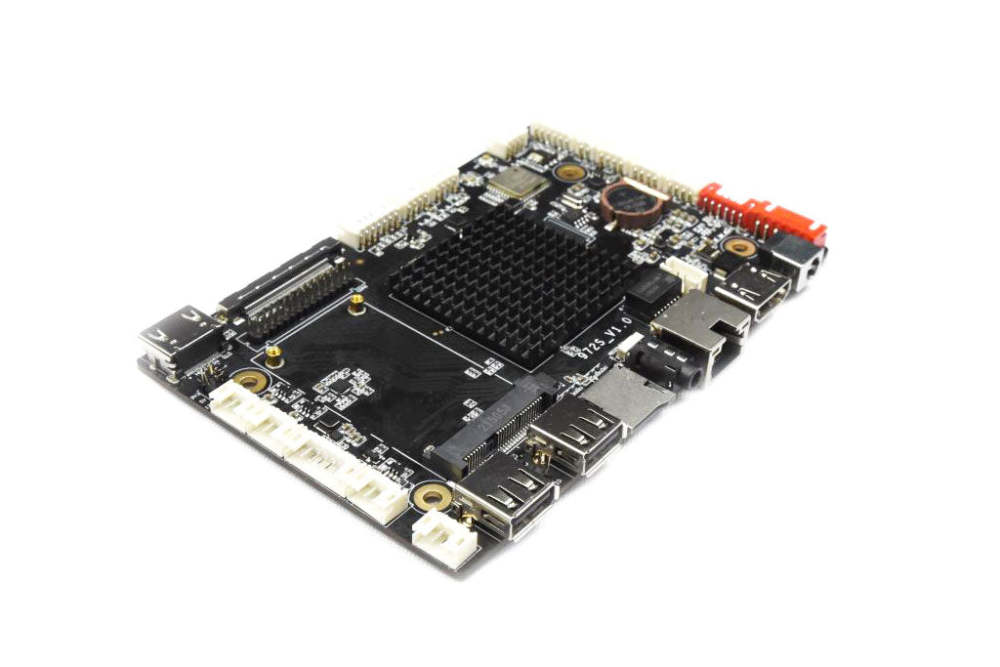

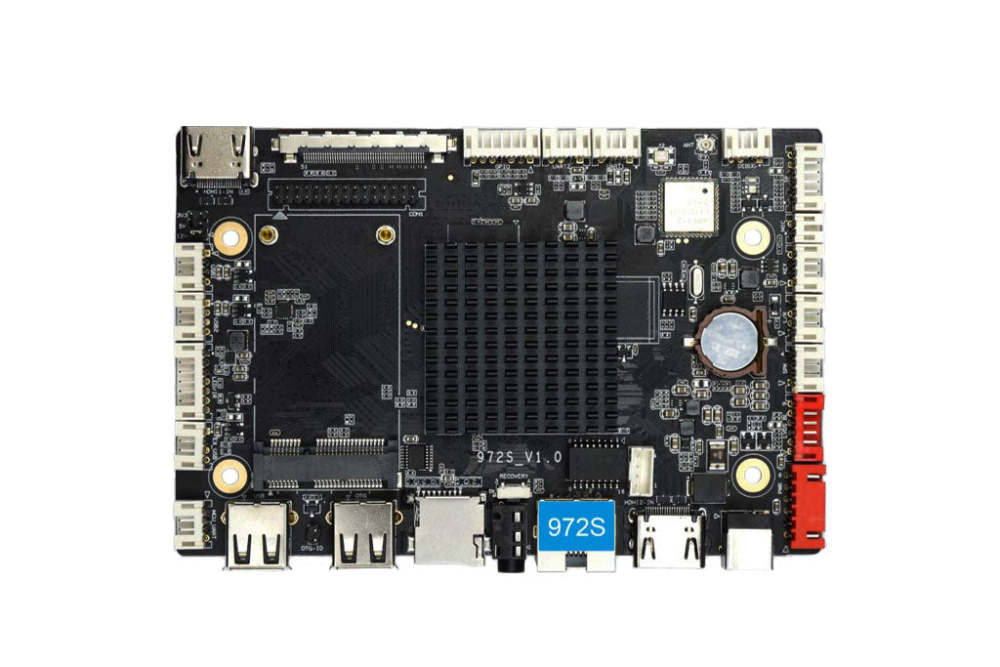

HD-972S it is a well-built all-in-one motherboard, adopting Amlogic T972 quad core Cortex-A55 processor, equipped Android 9.0 system, the main frequency can reach up to 1.9 GHz, with super performance. Use Mali-G31 GPU, support AFBC (frame buffering from compression), 4K, H.265 hard decoding,1080P video decoding, V-By-One interface 4K output, 4K level video playback.
|
Hardware Specifications |
|
|
CPU |
T972, Quad-core, Up to 1.9GHz, Android 9.0 |
|
GPU |
Mali-G31 GPU Quad-core GPU |
|
Memory |
LPDDR4, Standard 2GB |
|
Built-in storage capacity |
eMMC Standard 16GB TF Card extension (available for extension SSD) |
|
Network |
Support RJ45 R/A Fast Ethernet Support Ethernet； Support 2.4GHz Wi-Fi; Optional 5GHz； Support Wi-Fi 802.11b/g/n Protocol； Support Bluetooth 4.2 |
|
Display interface |
1 channel LVDS port, support 1080P output, adapt 3.3V/5V/12V powered 1 channel V-By-One port, support 4K output. 2 pcs HDMI IN ports, support 4K input |
|
Image rotation |
Support 0°，90°，180°，270° or manual rotation, optional gravity sensor module to achieve automatic rotation. |
|
Audio |
Support standard left and right channel line output; support 3.5mm audio output interface. |
|
Amplifier |
2 pcs output (8 Europe 5 watts dual studio amplifier output) |
|
Microphone |
Difference MIC input |
|
Touch screen |
Support USB Multi-point infrared touch, multi-point nano-film touch, multi-point acoustic wave touch, multi-point optical touch and so on. |
|
RTC |
Built-in real-time clock function |
|
USB |
1 piece USB-2.0 HOST, 1 piece USB2.0 OTG, 3 pcs USB ports (One of them is shared with 4G module). |
|
Infrared |
Infrared receiver, support infrared remote control function |
|
LED |
1* Power Status LED (green), 1* System LED (green, blinking by default) |
|
Button |
1*Upgrade Button |
|
Serial port |
3 serial ports (UART1 can adjust RS485 through hardware, UART2 can adjust RS232 through hardware, MCU_UART serial port is shared with MCU programming port), 1 channel DEBUG |
|
GPIO |
5-way IO input and output control, can do key scanning control |
|
KEY |
Support power on/off function, reserved reset, ADC function |
|
Power adapter |
Input: AC100-240V.50-60HZ, Output: DC12V 1.5A (Requires surge voltage less than 18V, ripple voltage less than 100mV) |
|
Storage humidity |
10%～90%, no condensation |
|
Storage temperature |
-40℃~70℃ |
|
Operating temperature |
-20℃~70℃ |
|
Software Specifications |
|
|
Operating System |
Android 9.0 |
|
Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats |
|
Video |
Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats |
|
Image |
Support various image formats such as JPG, BMP, PNG |
|
System Comes with Application Software |
APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc. |
|
Language |
support multi-language |
|
Input |
Standard Android keyboard with optional third-party input method |
|
System Management |
Original ecological Android system, open root permissions, and can customize product development |
|
Real-time remote monitoring, system crash self-recovery, unattended 7 * 24 hours |
|
|
Support OTA remote upgrade; support U-disk upgrade |
|
|
Support boot animation definition |
|
|
Support server / stand-alone mode switching |
|
|
Support Wi-Fi hotspot |
|
|
System Watchdog |
Support hard watchdog and software watchdog |
