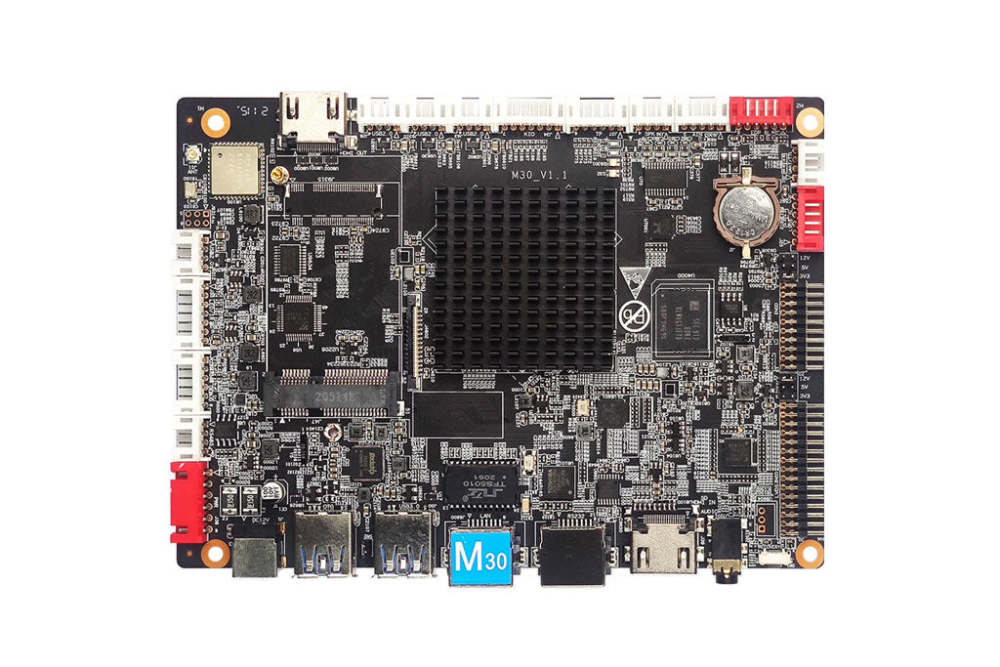

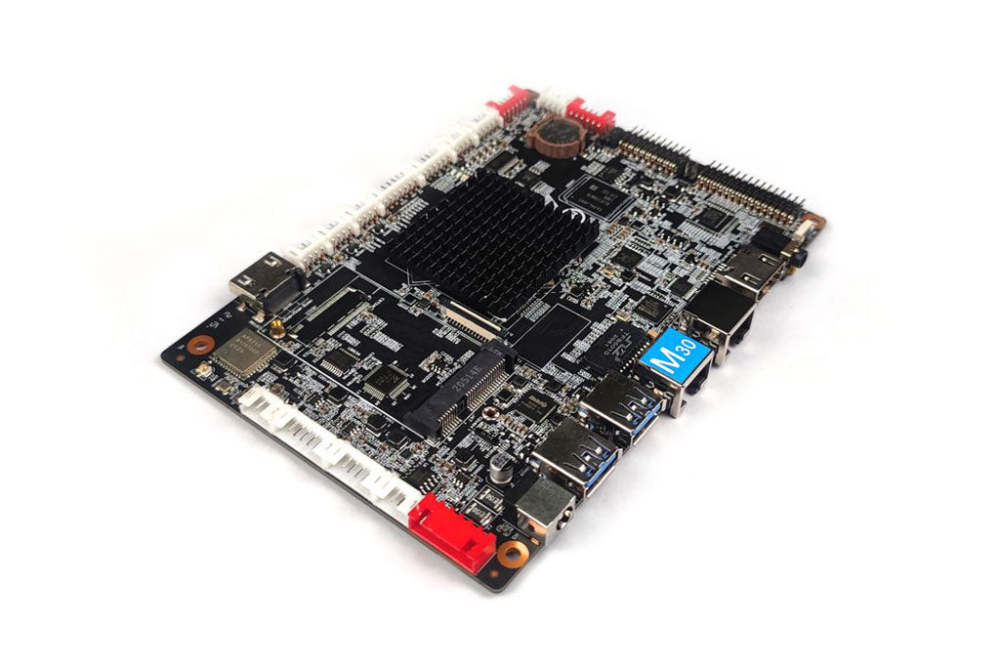

LCD Smart Motherboard HD-M30

The M30 is a LCD display smart motherboard, it is supports Internet remote cluster control for LCD advertising screens in shopping malls, hotels, airports, train stations, banks, etc., supports unified management with LED displays.

High performance. The RK3399 chip use CPU equipped with Android 7.1 system, which is faster and more powerful. The main frequency can be as high as 1.8GHz. Compared with the common single-core, dual-core and quad-core solutions in the market, the performance have qualitative leap, capable of playing various formats of high-definition video screens, and capable of handling complex interactive operations.
High stability. RK3399 Android integrated board, in hardware and software, add it own unique technology to ensure the stability of the product can make the final product 7 * 24 hours unattended.
High integration. Integrated board integrates Ethernet, EDP, Wi-Fi, power amplifier, USB expansion port, IR remote control function, HDMI, LVDS, backlight control, microphone and other functions, greatly simplifying the overall design.
High scalability. Six USB ports (Two USB 3.0, Four USB 2.0), 3 serial ports + 1 expandable debug serial port, five IO expansion ports can expand more peripheral device.
High definition. Largest support 3840*2160 4K decode; support various LVDS / EDP / HDMI OUT/HDMI IN interfaces (optional TF expansion port) LCD screen and cropping screens of various sizes and resolutions..
Perfectly support multiple mainstream touch screen functions such as multi-point infrared touch, multi-point capacitive touch, multi-point Nano film touch, multi-point acoustic wave touch, multi-point optical touch, etc.

LCD Smart Motherboard HD-M30 Product Diagram：

LCD Smart Motherboard HD-M30 Size：

Hardware specifications
CPU	RK3399 highest 64 bit high performance CPU，Frequency up to 1.8 GHz； 1.Dual Cortex-A72 big-core + Quad Cortex-A53 little-core 64-bit CPU 2.Build in low energy consumption MCU Cortex-M0
GPU	Quad Cortex ARM Mali-T864 high performance GPU
Memory	Default 4G
Build-in ROM	32KB EEPROM
Build-in storage capacity	Default 16G（64G optional）
Network	Adaptive 100M / 1000M Ethernet; Support 2.4G/5G Wi-Fi, support Wi-Fi 802.11b/g/n protocol; Built-in WCDMA, EVDO, 4G full Netcom, support voice calls.
Image rotation	Support manual rotation of 0 degrees, 90 degrees, 180 degrees, 270 degrees
Display interface	1 * LVDS interface (single / dual, 6-bit / 8-bit) ,support 7”-108” display screen 1080P 60HZ output, support 3.3V / 5V / 12V power supply 1 HDMI2.0 interface; Support 1080P 60HZ/120 HZ, 4K*2K 60HZ output. Support dual screen simultaneous display function, can directly drive interface EDP interface screen with multiple resolutions. Onboard backlight control supports 12V backlight power supply.
HDMI in or TF	1 HDMI IN or 1 TF card
Audio	Support standard left and right channel line output
Power amplifier	2 outputs (8 ohms, 5 watts dual audio amplifier output)
Microphone	Differential MIC input
Touch screen	Support USB multi-point infrared touch, multi-point capacitive touch, multi-point Nano film touch, multi-point acoustic wave Touch, multi-point optical touch and more.。
RTC	Built-in real-time clock function
USB	2 USB 3.0，4 extended USB 2.0口
Infrared	Infrared receiver, support infrared remote control function
LED	1power status LED(green),1system LED(green blinking in default)
Button	1*upgrade key
Serial port	1 RS232，1R S485，1 UART/TTL
IO port	4 KIO ports, support 5 IO input and output control，can be used as key scanning control
Mipi Camera	30pin FPC interface，Largest support 1300w Camera
Power Adapter	Input: AC100-240V.50-60HZ, Output: DC12V 1.5A (Requires surge voltage less than 18V and ripple voltage less than 100mV)

Software specifications
Operating system	Android 7.1.2
Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP and other formats
Video	Support AVI（H.264、DIVX、DIVX、XVID）, rm，rmvb， MKV（H.264、DIVX、DIVX、XVID），WMV，MOV，MP4（.H.264、MPEG、DIVX、XVID），DAT（VCD format），VOB（DVD format），PMP,MPEG，.MPG,， FLV（H.263，H.264），ASF ，TS， TP，3GP，MPG etc. and other 30 kinds of formats
Image	Support various image formats such as JPG、BMP、PNG
System comes with application software	APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc.
Language	Support multi-language
Input	Standard Android keyboard with optional third-party input method
System Management	Original ecological Android system, open root permissions, and can customize product development
	Real-time remote monitoring, system crash self-recovery, unattended 7 * 24 hours
	Support OTA remote upgrade; support U disk upgrade
	Support boot animation definition
	Support server / stand-alone mode switching
	Support Wi-Fi hotspot
System watchdog	Support software watchdog
