Description

LCD Smart Motherboard HD-40

HD-40 is a LCD digital signage motherboard, come with Wi-Fi, support mobile APP management, it can use LAN cable/TF card update programs, standard 1GB DDR and 16GB/8GB memory, rech extension interface, suitable for various occasions.

High stability. The A40i Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.
High integration. The A40i Android all-in-one board integrates Ethernet, Wi-Fi, Power amplifier, TF expansion card, USB expansion port, IR remote control function, HDMI, LVDS, Backlight control, microphone and other functions, which greatly simplifies the design of the whole machine.
High scalability. 6*USB (4 *Pins, 2 *standard), 5 *serial ports (4 *UART, 1 *DEBUG), and 5 *IO expansion ports available expand more peripheral devices.
High definition. It supports various LVDS/HDMI interface LCD displays, and supports various sizes and resolutions of cropped screens.
Perfectly support multiple mainstream touch screen functions such as multi-point infrared touch, multi-point capacitive touch, multi-point Nano film touch, multi-point acoustic wave touch, multi-point optical touch, etc.

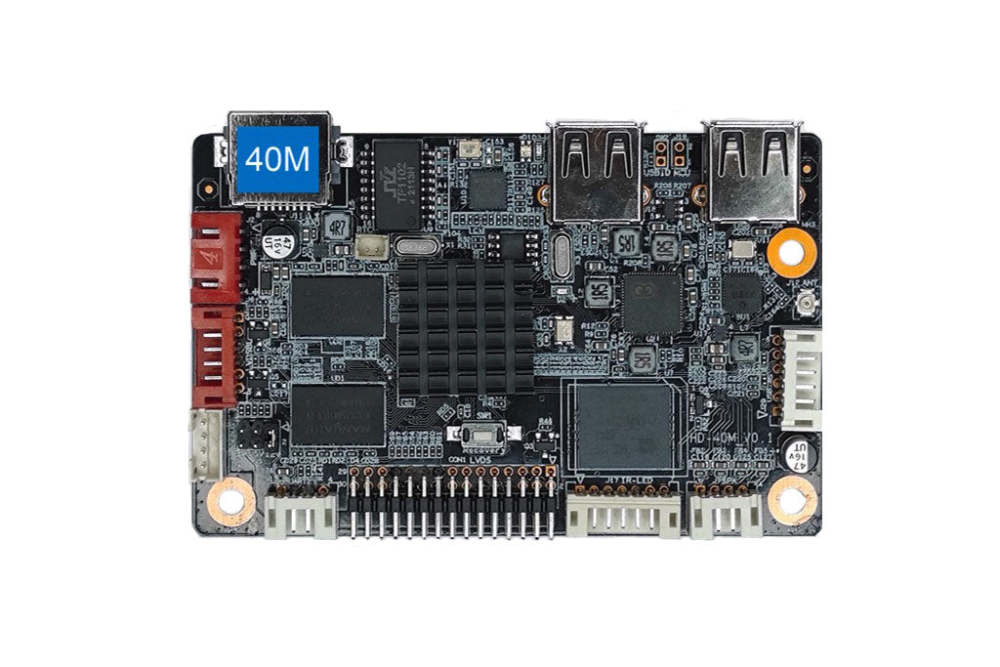

LCD Smart Motherboard HD-40 Product Diagram：
Huidu LCD Smart Motherboard HD-40

LCD Smart Motherboard HD-40 Size：
Huidu LCD Smart Motherboard HD-40

Hardware specifications
CPU	A40i, Quad-core，Dominant Frequency up to 1.2GHz， Android7.1.1
GPU	Mali400 MP2
Memory	1GB
Built-in ROM	eMMC Default 8GB TF Card Extend(Extendable SSD)
Network	RJ45 100M; Ethernet； Wi-Fi, support Wi-Fi 802.11b/g/n protocol；
Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual rotation
Display interface	1*LVDS interface (single/dual, 6-bit/8-bit), support 3.3V/5V/12V power supply Onboard backlight control supports 12V backlight power supply
Audio	Support standard left & right channel line output; support 3.5mm audio output interface
Power amplifier	2 outputs (8 ohms, 5 watts dual audio amplifier output)
Microphone	Differential MIC input
Touch screen	Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point sound wave Touch, multi-point optical touch and so on
RTC	Built-in real-time clock function
USB	1 USB-2.0 HOST , 1 USB2.0 OTG, 4 *Expansion USB
IR	Infrared receiver, support infrared remote control function
LED	1power status LED(green),1system LED(green blinking in default)
Button	1*upgrade key
Serial port	4 UART，1 DEBUG
IO Port	5 *IO input/output，Available key scanning control
Power Adapter	Input:AC100-240V.50-60HZ ， Output： DC12V 1.5A (Requires surge voltage less than 18V and ripple voltage less than 100mV)

Software specifications
Operation system	Android 7.1.1
Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP and other formats
Video	Support AVI，rm，rmvb， MKV，WMV，MOV，MP4，DAT，PMP，MPEG，MPG， FLV，ASF ，TS， TP，3GP，MPG and other formats
Image	Support JPG、BMP、PNG and various images formats
System default application software	APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc.
Language	Support multi-language
Input method	Standard Android keyboard with optional third-party input method
System Management	Original ecological Android system, open root permissions, and can customize product development
	Real-time remote monitoring, system crash self-recovery, unattended 7 * 24 hours
	Support OTA remote upgrade; support U disk upgrade
	Support boot animation definition
	Support server / stand-alone mode switching
	Support Wi-Fi hotspot
System watchdog	Support software watchdog
