Environmental Monitoring Sensor Box HD-S208 S208 is a new and upgraded multi-functional sensor supporting all asynchronous full color control systems, which includes eight functions of temperature, humidity, brightness, PM value, wind speed, wind direction, noise and brightness. The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-functional shutter box, remote control receiver and S208 main control box.
1、 Connection Demo The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-function shutter box, remote control receiver and S208 main control box.

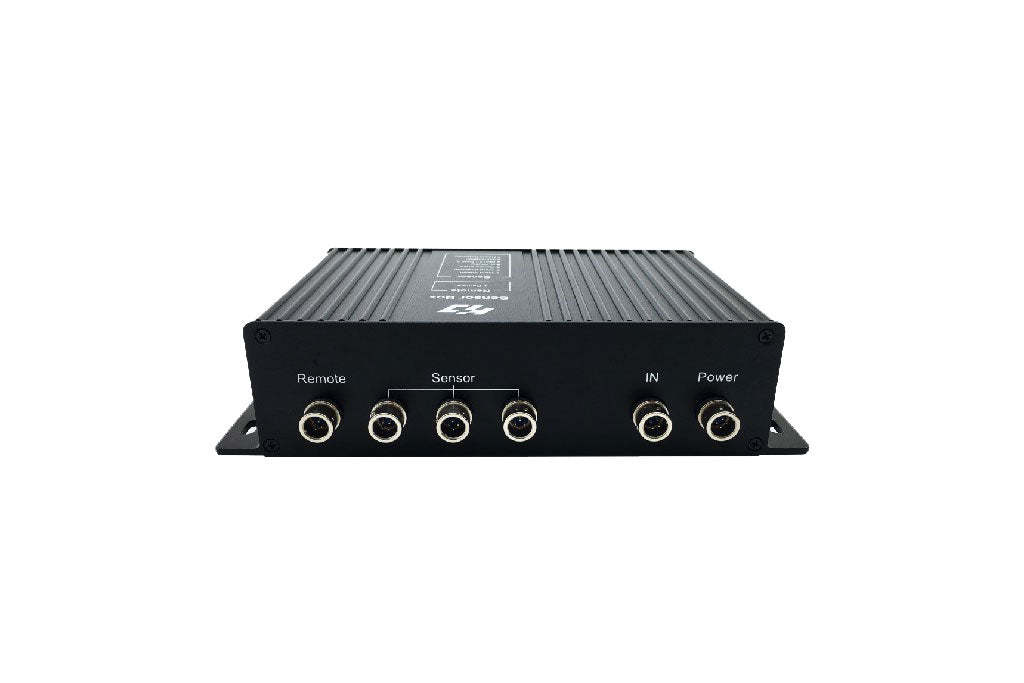

2、 HD-S208 Package description 1. HD-S208 Main Control Box Responsible for collecting the data transmitted by the sensor and connecting with the control card is the core of the whole set of equipment.
2. Wind Speed Sensor Real-time sensing of the speed of ambient air circulation, passing data to the main control box.
3. Wind Direction Sensor Real-time sensing of the direction of ambient air circulation, passing data to the main control box.

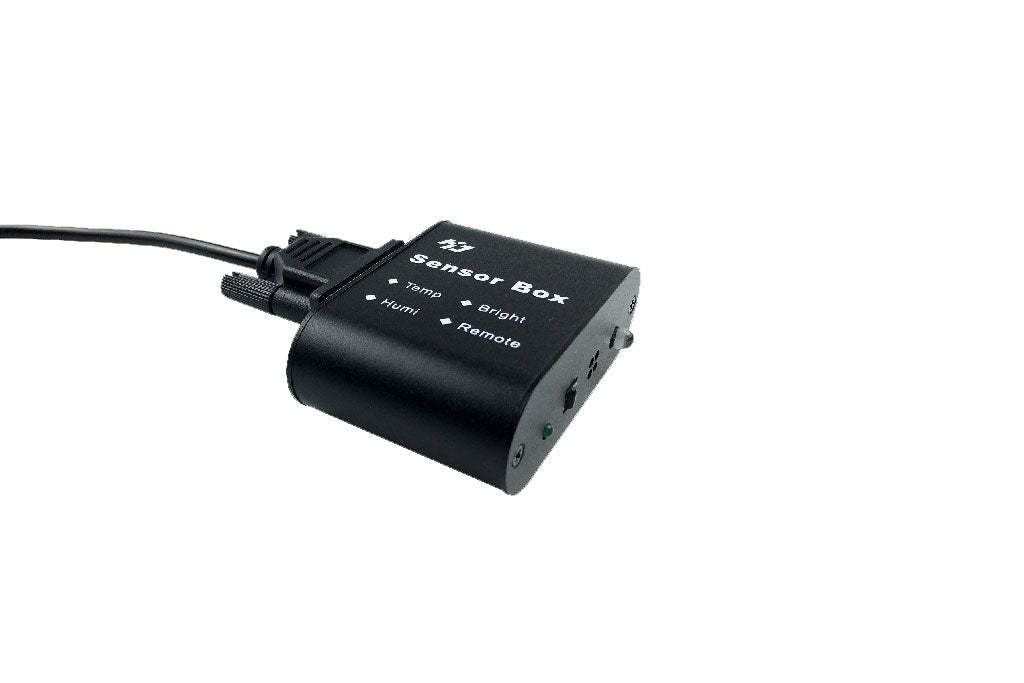

4. Multi-Sensor Ability to monitor temperature, humidity, brightness, noise, and PM2.5, PM10 values and pass this data to the main control box.
