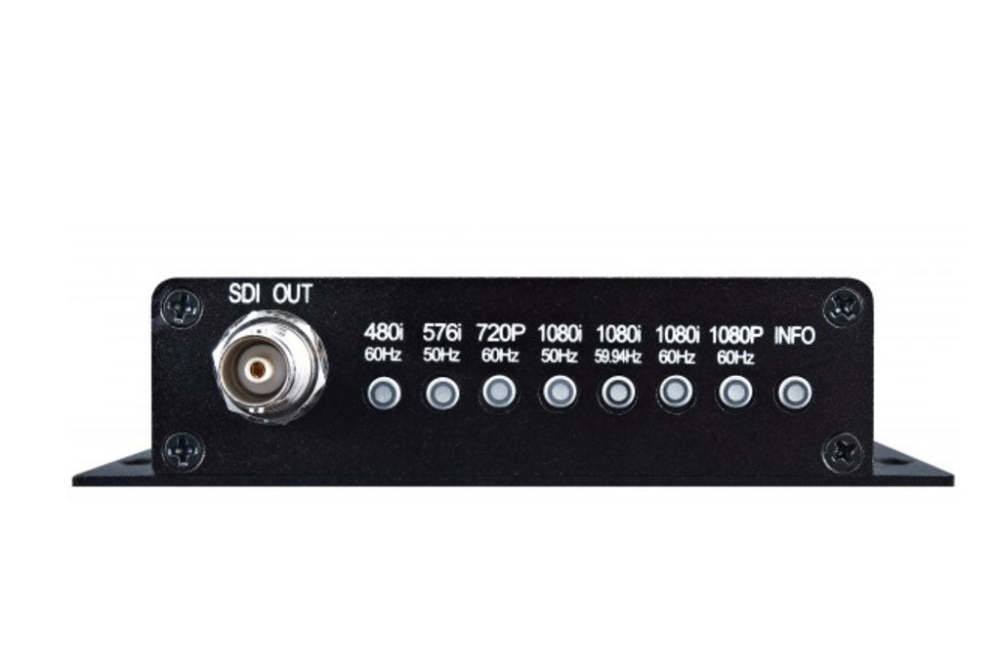

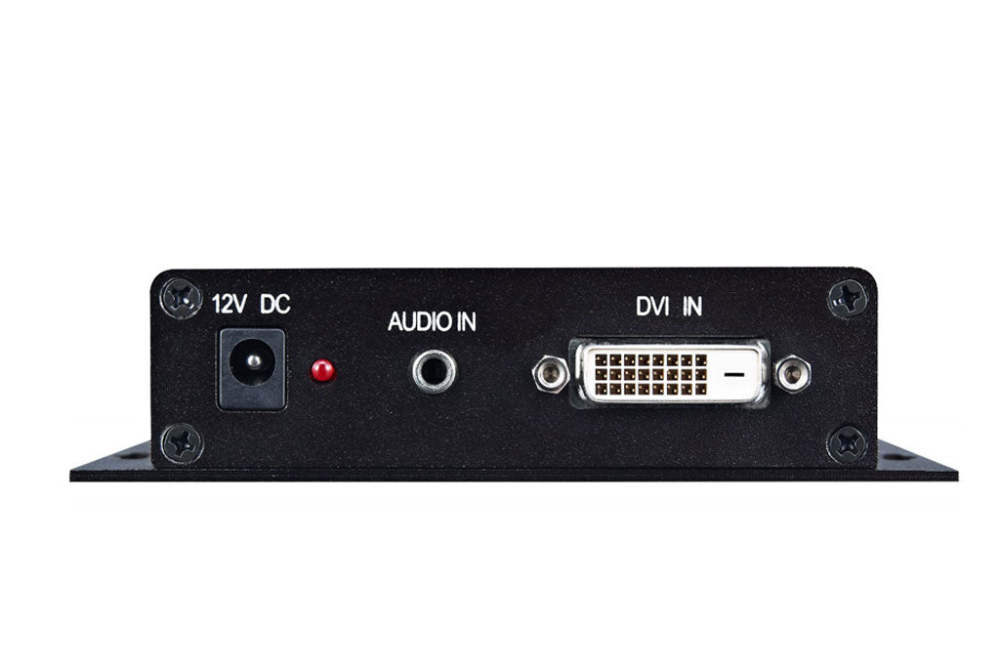

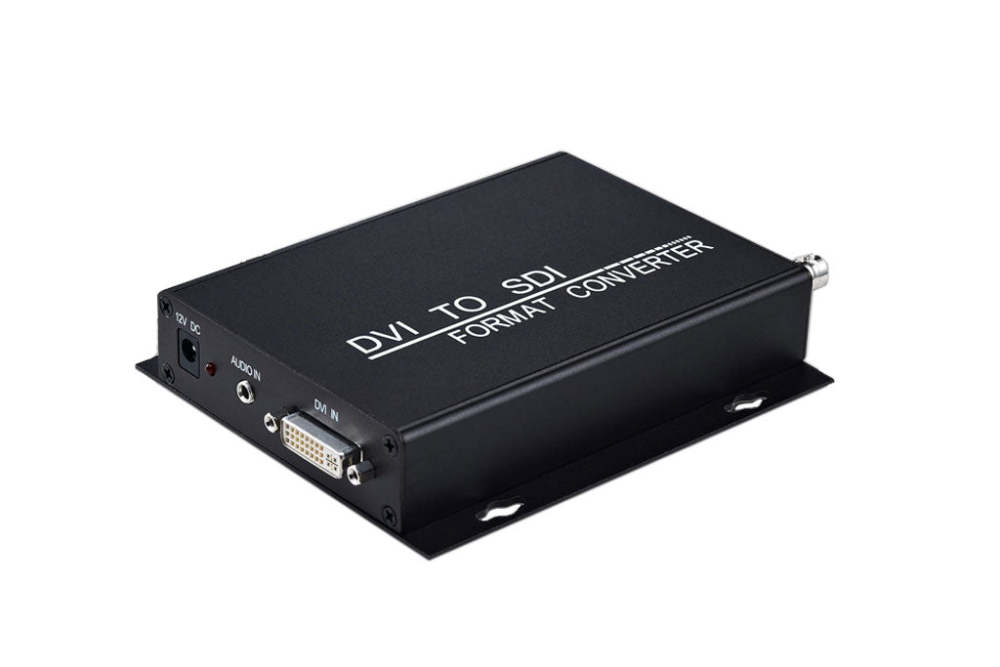

MIG-2123 Format Converter DVI to SDI
Specification
Input Indicators
Port Amount Resolution Standard
DVI 1 VESA
Output Indicators
Port Amount Resolution Standard
SDI 1 480i/60Hz,576i/50Hz,720p/60Hz,1080i/50Hz,1080i/59.94Hz1080i/60Hz,1080p/60Hz
Unit Specification
Power Supply:12V DC 2A
Consumption:10W
Operating Temperature:0~45℃
Product Dimension:140.2 X 121.3 X 28.9mm
Net Weight:0.3Kg
Gross Weight:0.8Kg

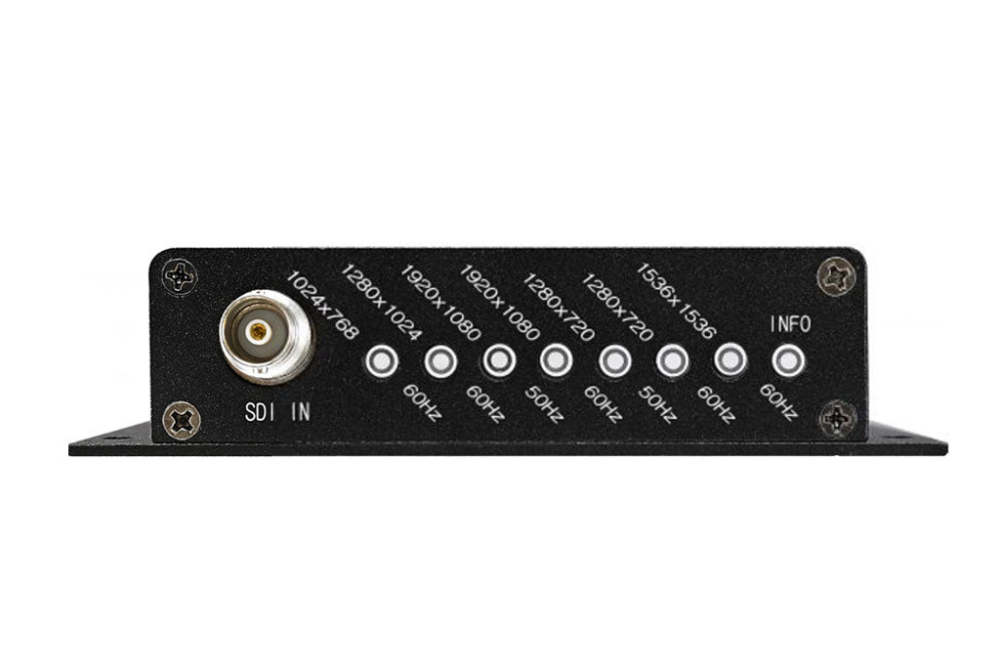

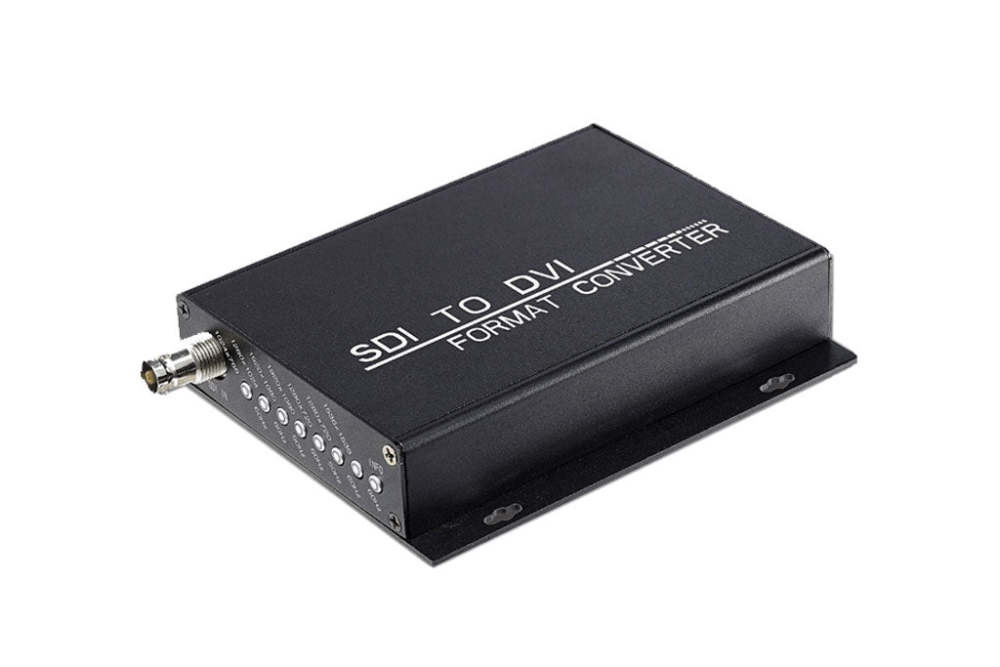

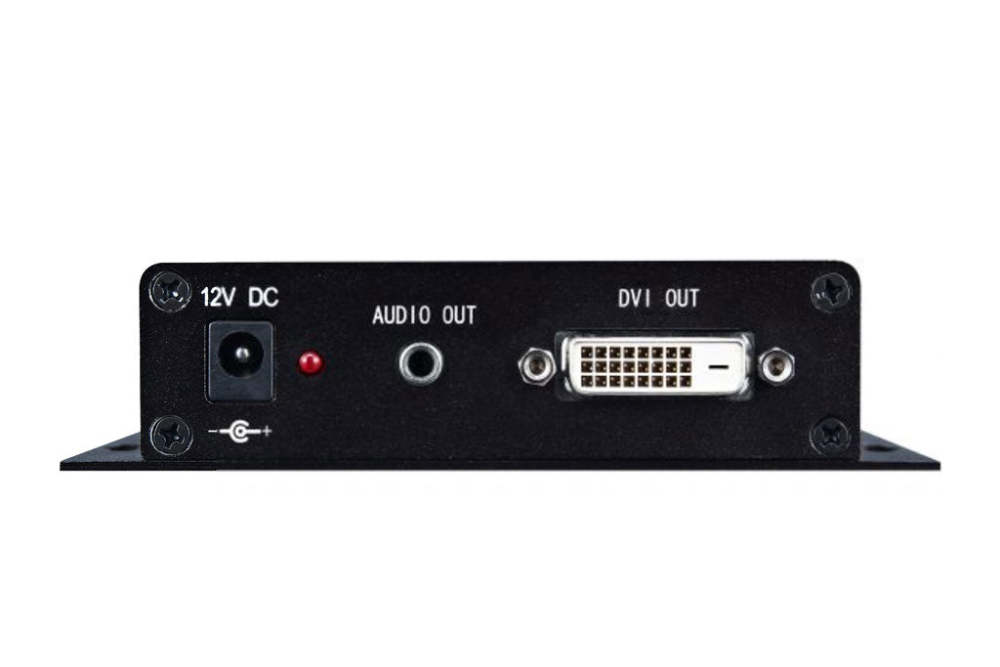

MIG-2132 Format Converter SDI to DVI
Technical Specification Input Indicators Port---Amount---Resolution Standard
SDI--------1-------480i/60Hz、576i/50Hz、720p/60Hz、1080i/50Hz、1080i/59.94Hz、1080i/60Hz、1080p/60Hz
Output Indicators Port---Amount---Resolution Standard
DVI-------1-------1024x768/60Hz、1280x1024/60Hz、1920x1080/50Hz、1920x1080/60Hz、1280x720/50Hz、1280x720/60Hz、1536x1536/60Hz
Unit Specification Power Supply:12V DC 2A
Consumption:10W
Operating Temperature:0~45℃
Product Dimension:140.2 X 121.3 X 28.9mm
Net Weight:0.3Kg
Gross Weight:0.8Kg
Accessories Instruction x 1 Power Cable x 1 DVI Cable x 1 Power Adaptor x 1 Certificate x 1

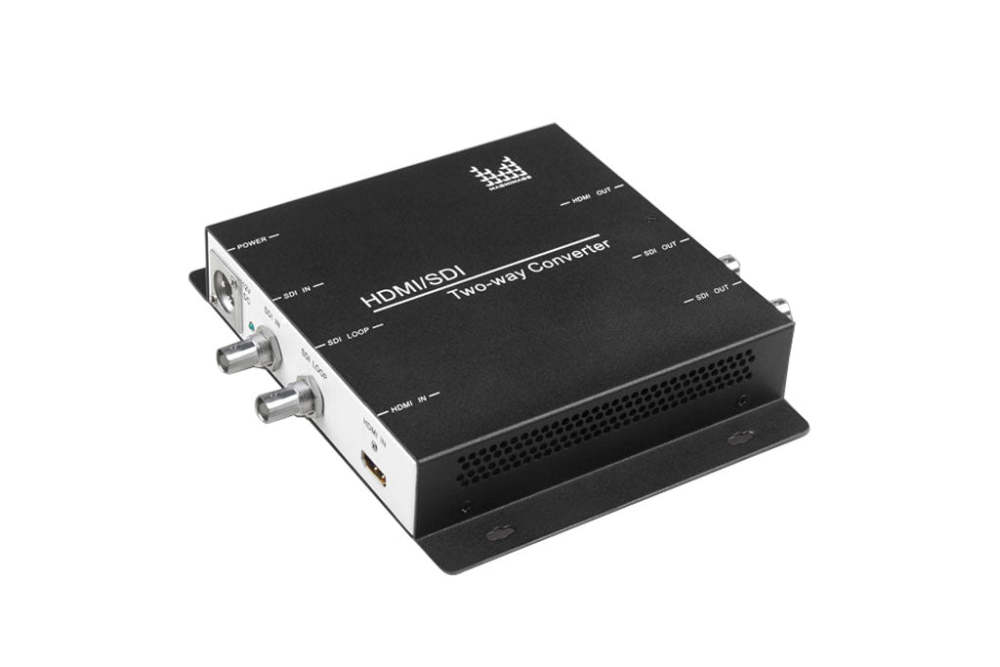

MIG-2134 HDMI/SDI Two-way Converter
