COEX Series KU20 LED Display Controller

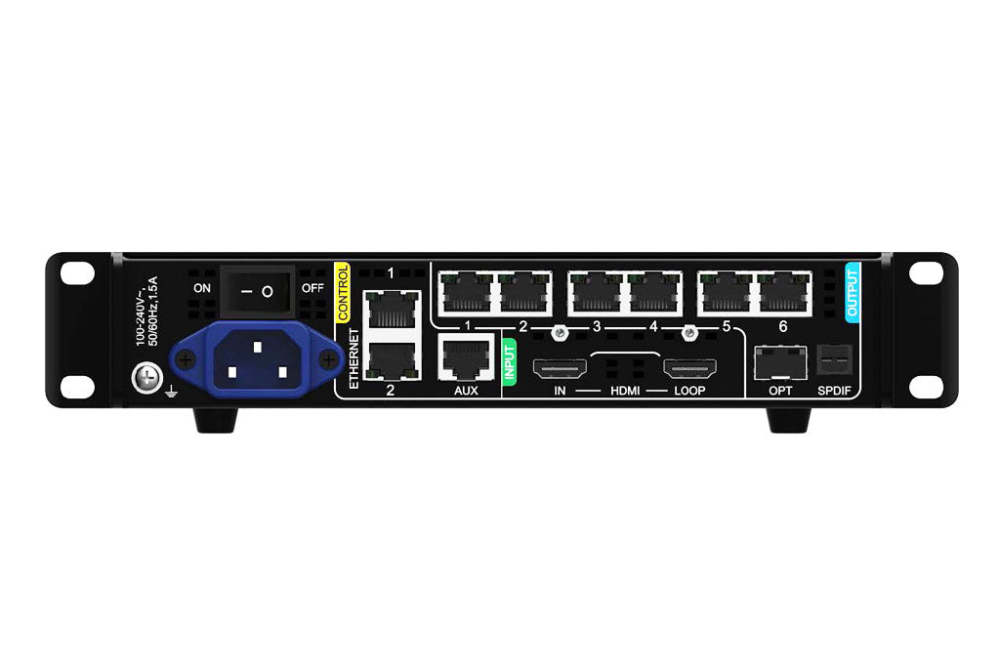

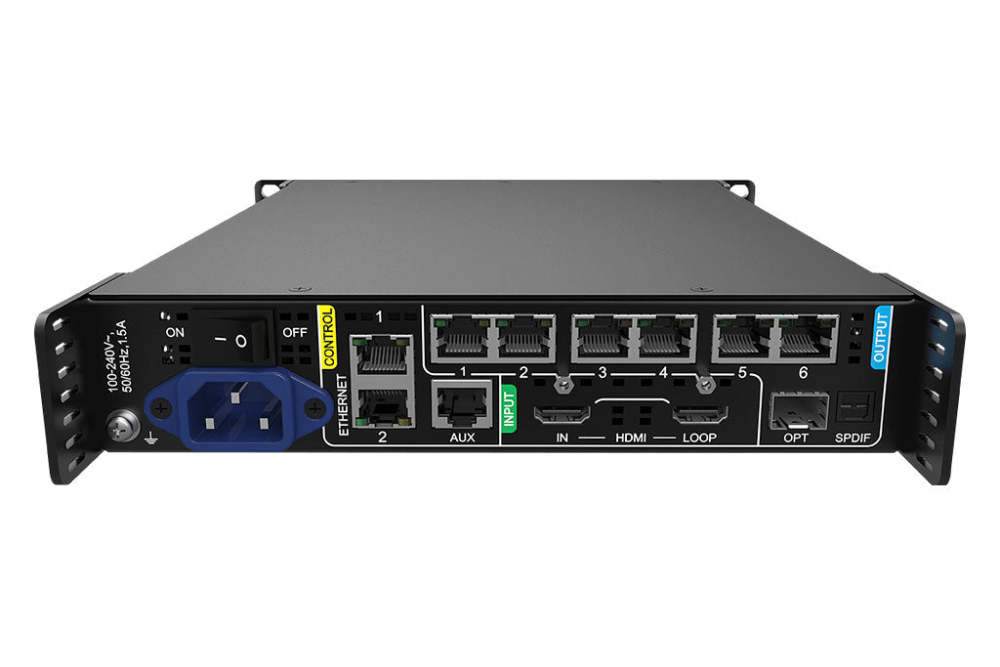

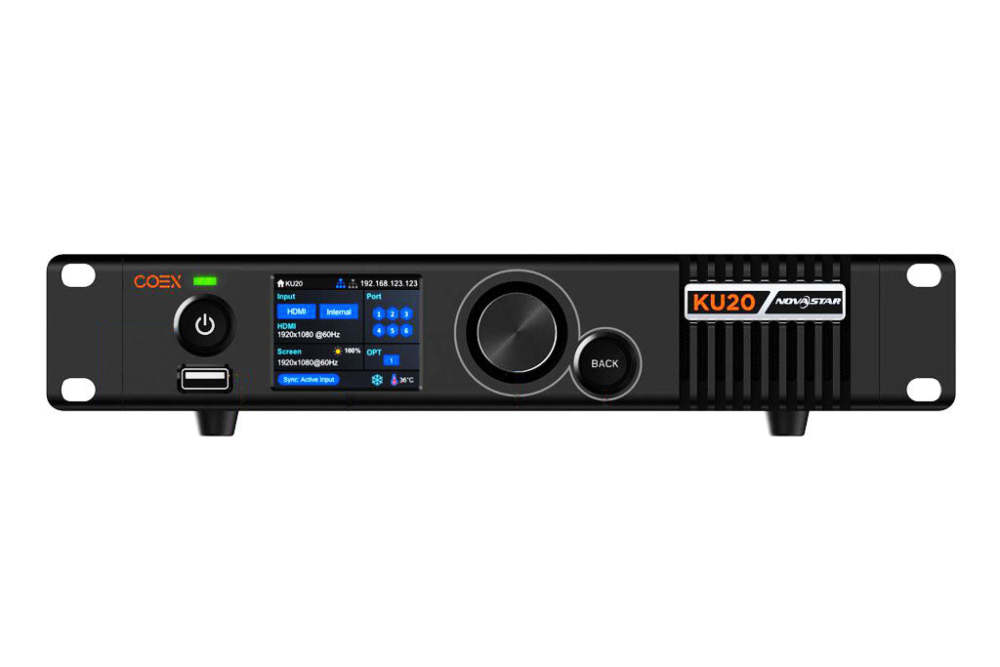

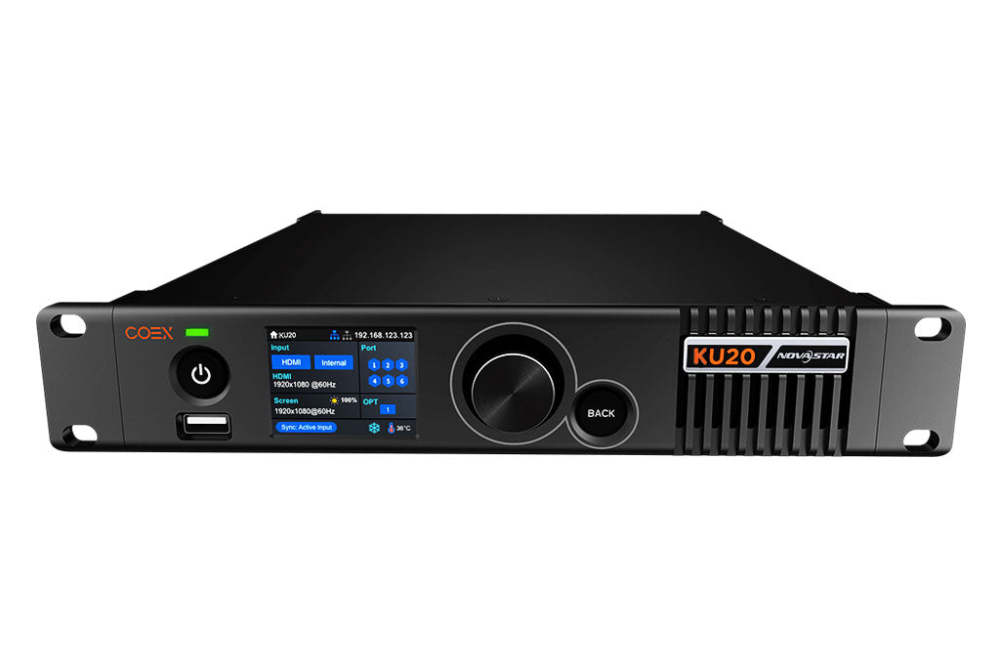

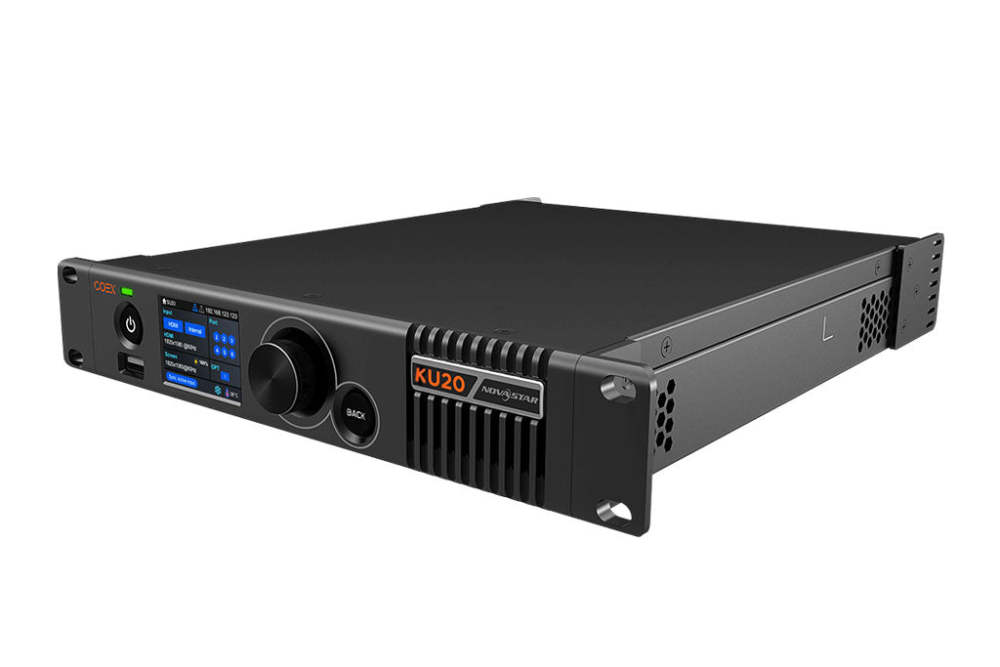

The NovaStar KU20 is a cost-effective LED display controller in the new-generation control system COEX series. This controller offers 1x HDMI input, 6x Ethernet outputs and 1x optical output. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

HDMI input
1x HDMI 1.3 (with loop through)

10-bit and 8-bit video inputs

Ethernet outputs
6 Ethernet outputs, up to 2.3 million pixels supported. Support redundancy between Ethernet ports.
Max loading capacity per port:
8bit@60Hz: 650,000 pixels
10bit@60Hz: 480,000 pixels (available only with the A10s Pro receiving card)
10bit@60Hz: 325,000 pixels

Optical output
One 10G SFP+ output

Adaptive frame rate
Adaptive to various input frame rates, including decimal frame rates

Max width: 3840 pixels (3840×600@60Hz)
Max height: 2560 pixels (800×2560@60Hz)
