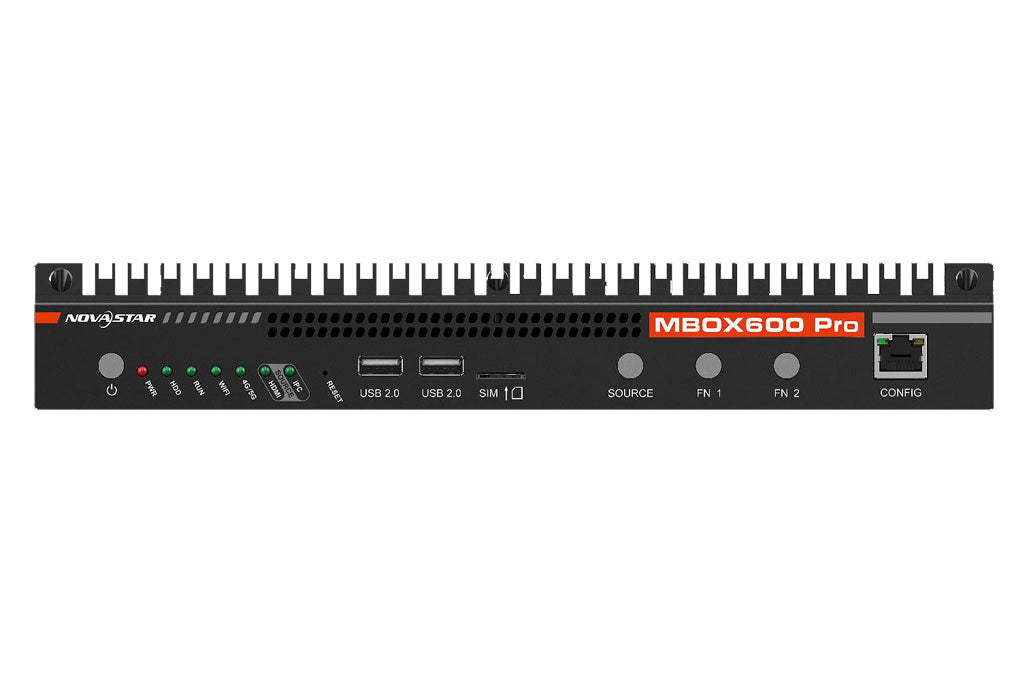

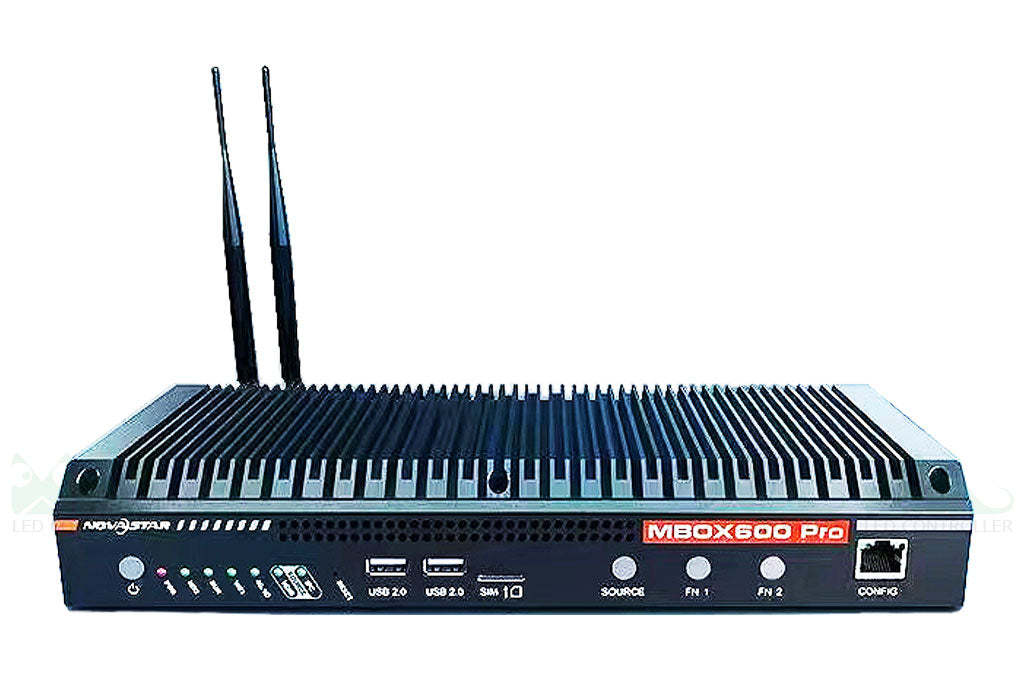

NovaStar MBOX600 Pro LED Display Controller LED Multimedia Player

MBOX600 Pro is an advanced industrial controller designed by NovaStar to meet the demanding requirements of professional LED display applications. This robust controller integrates an industrial PC with powerful sending capabilities, offering seamless control and monitoring for specialized advertising media displays. It provides comprehensive system management via a user-friendly web application, ensuring easy operation in various scenarios, including unattended installations such as outdoor fixed screens. With its exceptional scalability, the MBOX600 Pro unlocks the full potential of your LED display systems, making it an essential tool for innovative and secondary development needs.
Loading capacity up to 2,600,000 pixels with a maximum width of 4096 pixels and maximum height of 1920 pixels
Supported common resolutions: 1440×900, 1920×1080, 1920×1200, 2048×1152, and 2560×960

Uses Intel® Processor N97

Automatic power-on

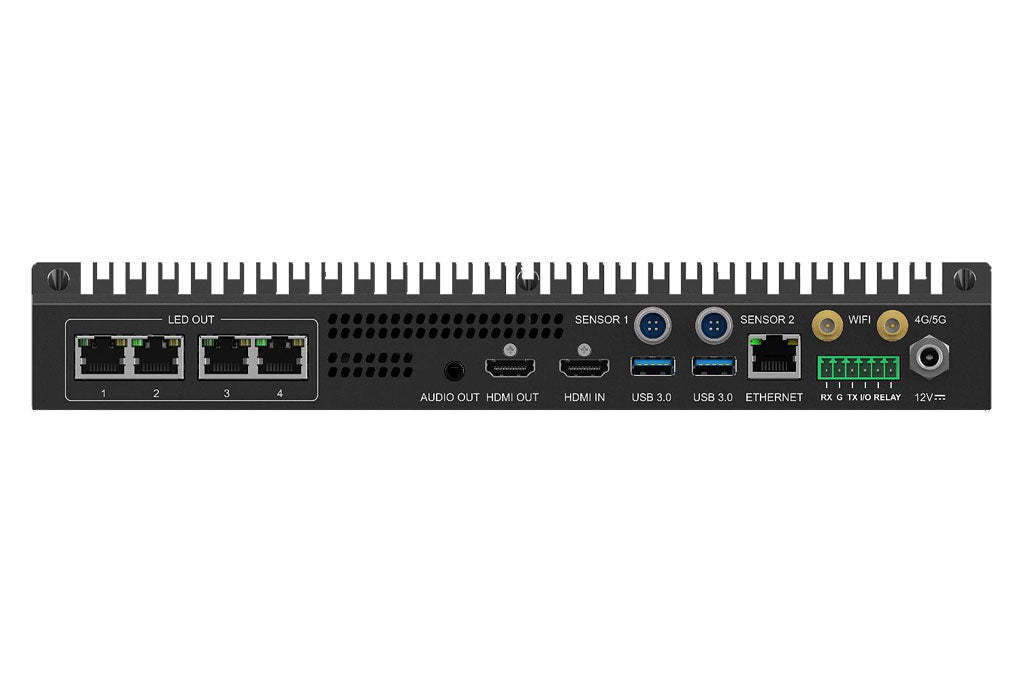

1 × HDMI1.3 2 × USB 2.0 ports and 2 × USB 3.0 ports
1 × HDMI output
4 × RJ45 output
1 × Audio 3.5mm output
1 × RS232 connector
2 × Gigabit Ethernet port
2 × Sensor Interface
WIFI 5 ,2.4G/5G

Windows10 &Linux system
SNMP protocol
Custom Scaling
Remote Configuration, Remote

Capacity:2.6 million pixels
Max power consumption:43W
Operating environment:Temperature: -20°C–60°C
Humidity: 0% RH–80% RH, non-condensing
Storage environment:-40°C–80°C
Dimensions (L ×W ×H):285.0 mm ×135.2 mm ×46.5 mm
Net Weight:1465.7g
