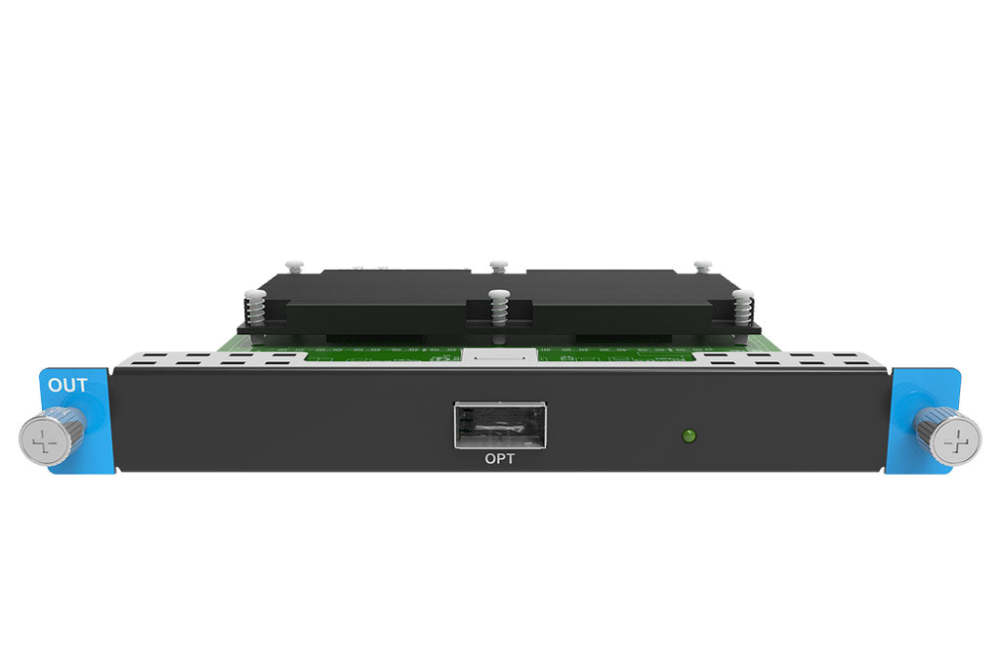

Novastar MX Series 1 x 40G Fiber Output Card

Novastar MX Series 1 x 40G Fiber Output Card

The Novastar MX Series 1x 40G Fiber Output Card is a fiber sending card for the Novastar MX Series main frames. It has one 40G optical output ports that support single and multi-mode fiber modules and a maximum transmission distance of 10 km. A single card supports up to 40x Ethernet port outputs. A single 1G Ethernet port has a maximum load of 659,722 pixels at 8-bit/60 Hz, which translates to 26,388,880 pixels for 40 1G ports.
Note: the required SFP modules are not included and must be purchased separately.

• Sending card with 1x40G SFP optical outputs  √
• Supports 8-, 10- and 12-bit colour depth   √
• Supports up to 26,388,880 pixels   √

• Supports Single Mode and Multi Mode fiber transmission   √


Output Slots:1
SFP Slot Type:40G
SFP Slot Quantity:1
Scaling Function:Yes
Maximum Loading Capacity:26 Mpx
Greyscale Processing:12 bit
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
