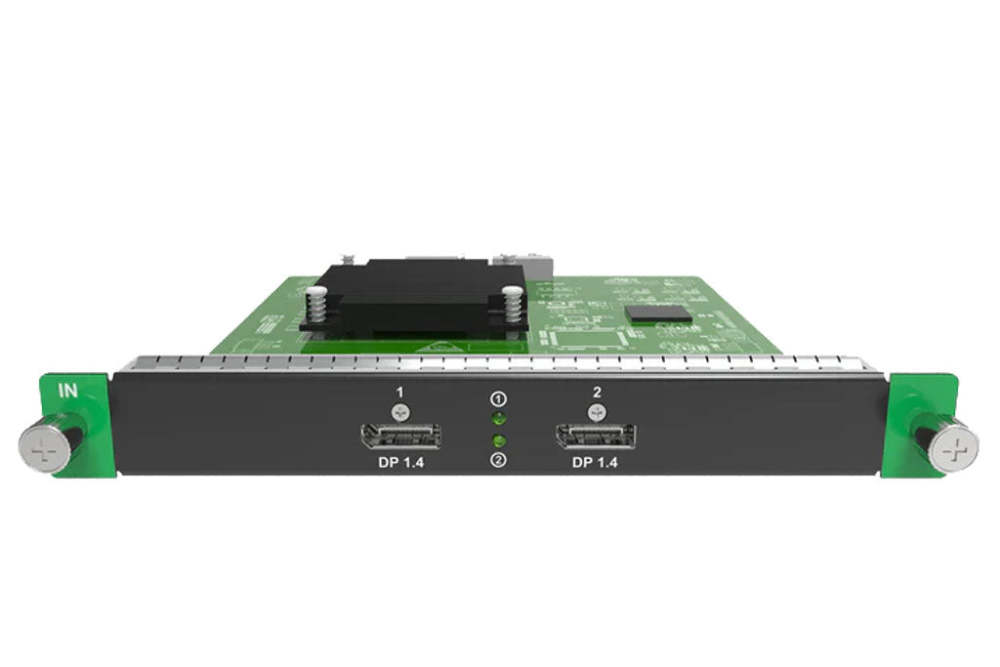

Novastar MX Series 2x DP 1.4 Input Card

Novastar MX Series 2x DP 1.4 Input Card

The Novastar MX Series 2x DP 1.4 Input Card is an input card for the Novastar MX Series main frames. It is HDCP 2.3 compliant and backwards compatible with HDCP 2.2, 1.4 and 1.3. It accepts two inputs, each with resolutions up to 7680 x 4320 @ 30 Hz and frame rates up to 240 Hz. HDR10 and HLG are also supported and it complies with SMPTE ST 2084 and 2086 standards. Two status LEDs indicate whether the input signals are valid.

• Supports DP 1.4 and 2x 8K UHD  √
• Supports HDR10 and HLG   √
• HDCP 2.3 compliant   √

• Two status LEDs   √

DP 1.4:2
Input Slots:1
Maximum Input Resolution:3840 x 2160, 7680 x 4320
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
