Novastar Thunderview S1 LED Video Wall Controller Low Latency System Solution

The S1 is NovaStar's new generation of Thunderview series display controller especially designed for high-end display applications. With multiple I/O connectors and control connectors, it is ideal for different applications, such as broadcasting and television, indoor high-end screens with fine pitch, rental for stage, security monitoring,etc.
The S1 has 3G data transmission bandwidth. A single coaxial connector can support up to 1920x1080@60Hz and the device supports up to 3840x1080@60Hz. Benefiting from the SerDes technology, the S1 can realize zero-frame latency.

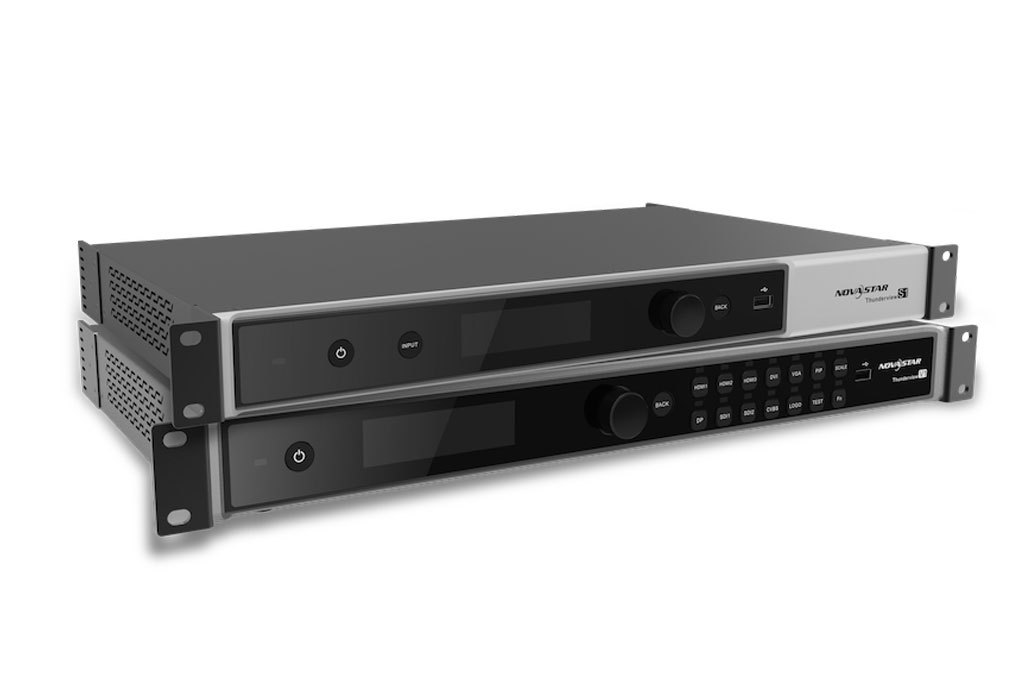

*For the sake of easy understanding, the Novastar Thunderview Low Latency System Solution icon is included. For the entire system, please purchase the Novastar V1 LED Video Processor and the Novastar TR100 Receiving Card.

1 Frame Latency Coaxial Solution. 4K+1K resolution loading capacity, easy for large screen solutions.

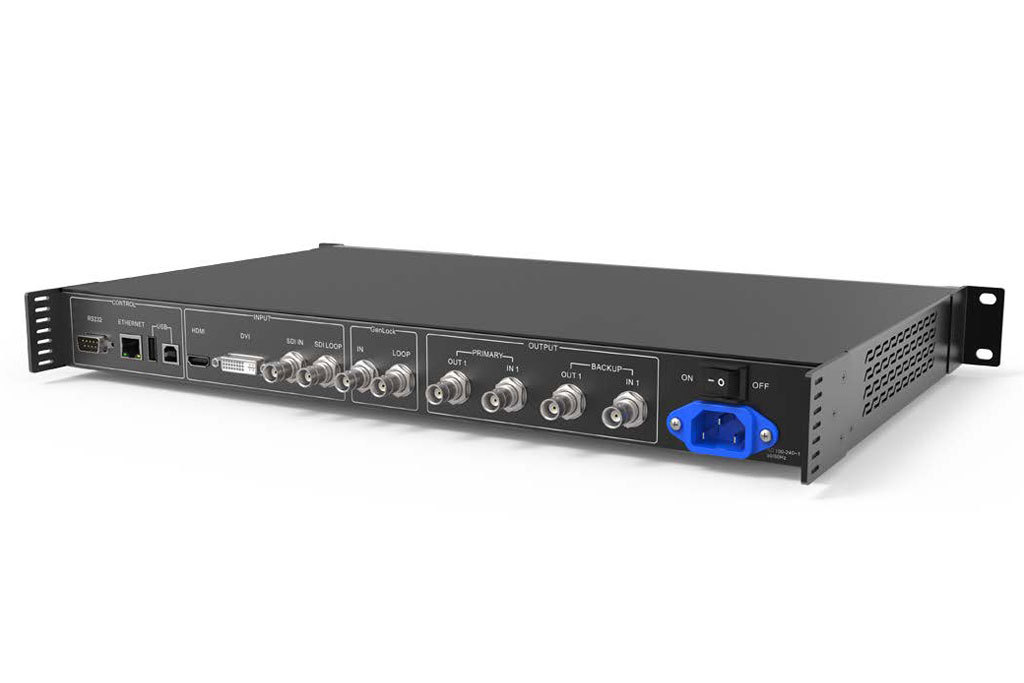

• The inputs of the S1 include 3G-SDI×1, HDMI×1, DVI×1 and support input
• resolutions up to 3840×1080@60Hz.
• The outputs of the S1 include BNC×2 pairs.
• Low latency feature, the whole system including S1 and TR100 only 1 frame.
• Capable of cascading multiple controllers to load a large screen.
• Support pixel-level calibration technology.
• Support Mapping.
• Support the hardware backup solution.
• The system can be configured with a knob and a button on the front panel.
• Computer software for system configuration is not necessary.
• The OLED display makes operations much easier.

Input voltage:AC 100V~240V
Rated current:1.5A
Rated power consumption:20.0W
Operating ambient temperature:-20°C-60°C
Operating ambient Humidity:10%RH-90%RH, non-condensing
Dimension:482.6mm ×288.5mm ×45.0mm
Net weight:3.85kg
Space requirements:1RU

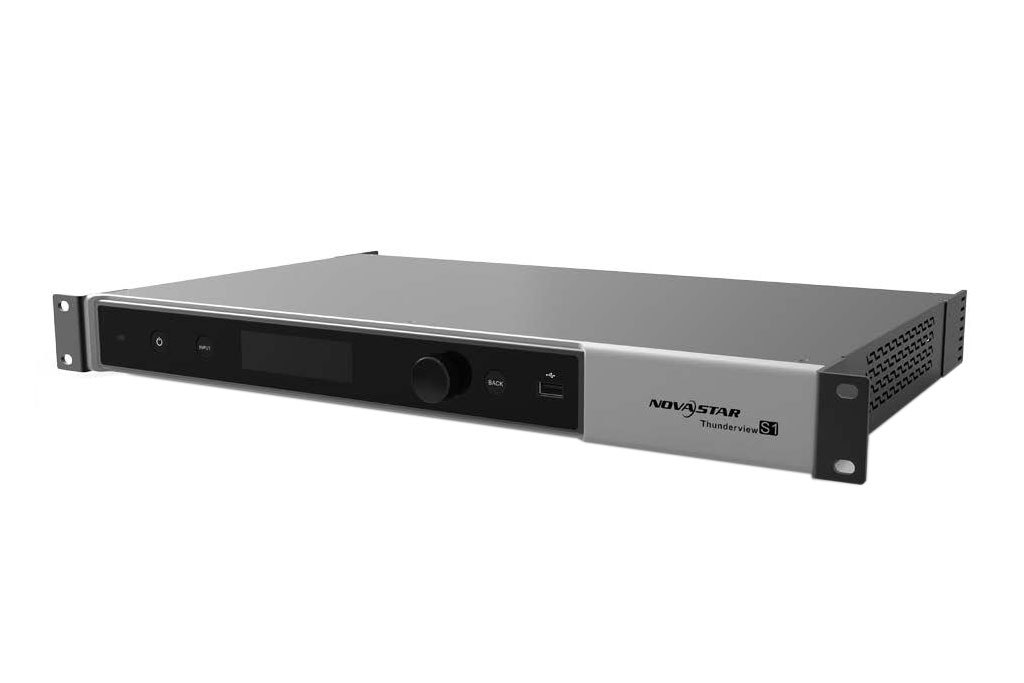

LED Video Wall Controller Appearance



LED Video Wall Controller Working Diagram
