P6 P8 P10 Sports Stadium Perimeter LED Screen LED Displays Cabinet
SKU: P10 OAS
(0 Reviews)
0 Sold
1/1
ANTI-RUST FUNCTION
The cabinet of unit modules adopts to high-temperature spraying technology, the anti-rust function is greatly improved.
HIGH WATERPROOF GRADE
IP65 High waterproof grade to protect your screen from no matter how heavy rain it is.
SUPER WIDE VIEWING ANGLE
The display features a wide viewing angle of 120° horizontal and 120° in vertical. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.

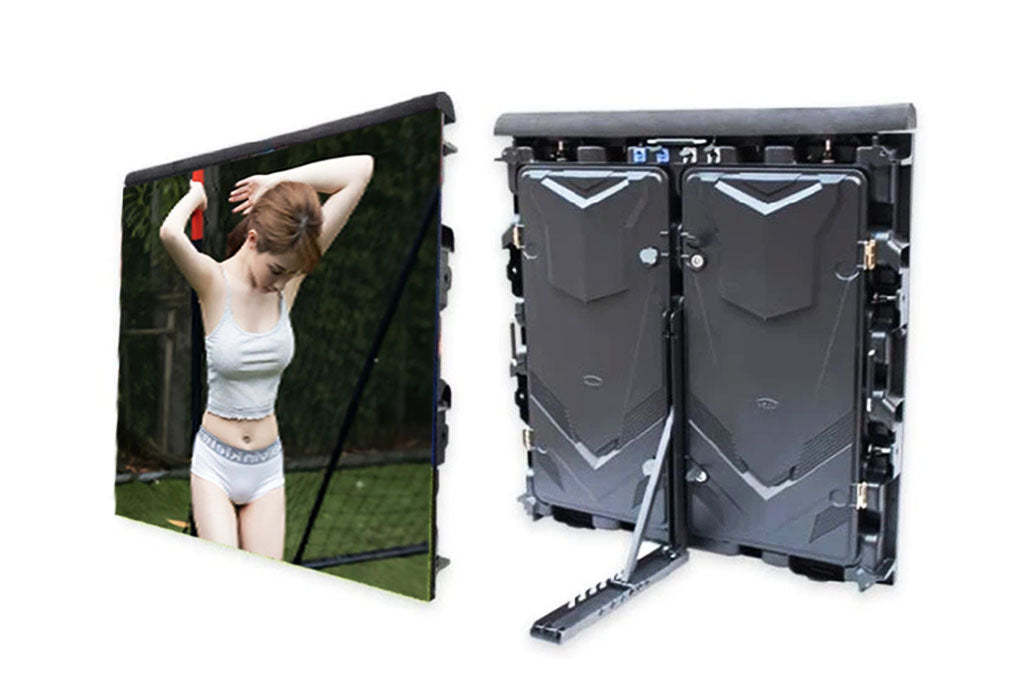

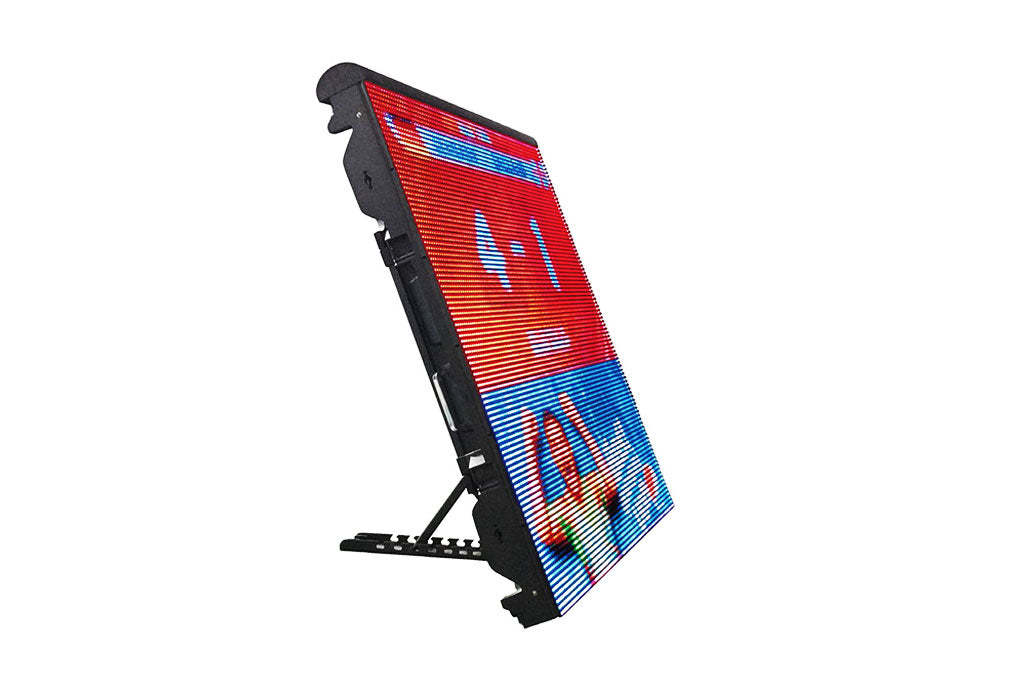

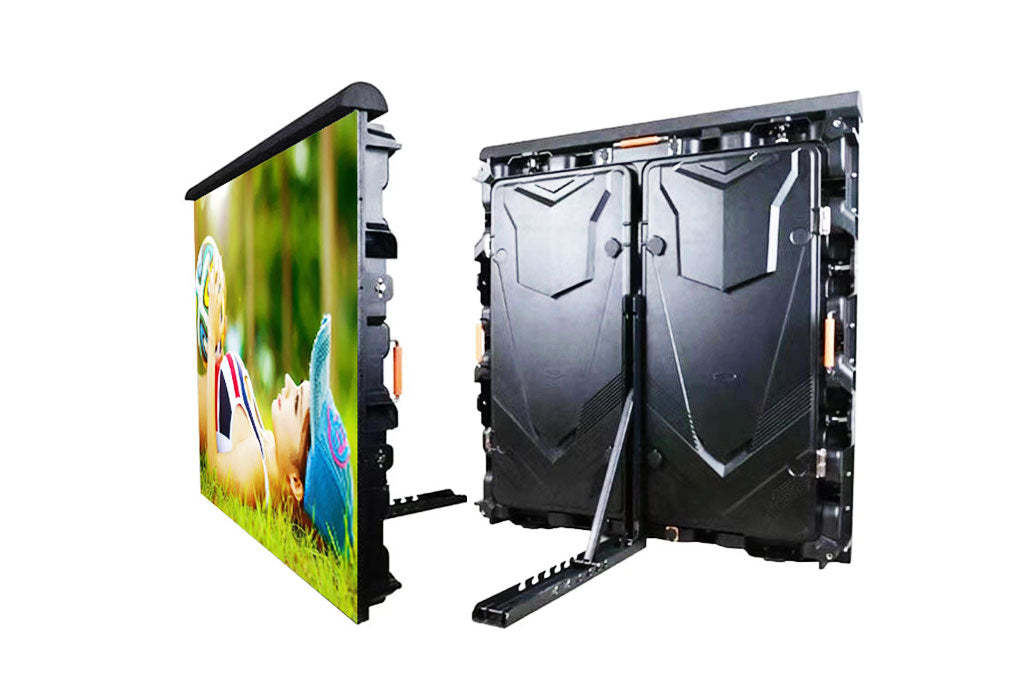

EASY & QUICK FOR INSTALLATION & MAINTENANCE
Standardized cast aluminum design with quick locks and connectors for fixed and rental installations. Lightweight, ultra-slim, easy for installation and maintenance.
INDEPENDENT POWER CABINET
The power box is independent, and it can be moved. It is convenient to assemble and maintain the power supply and the LED receiving card.

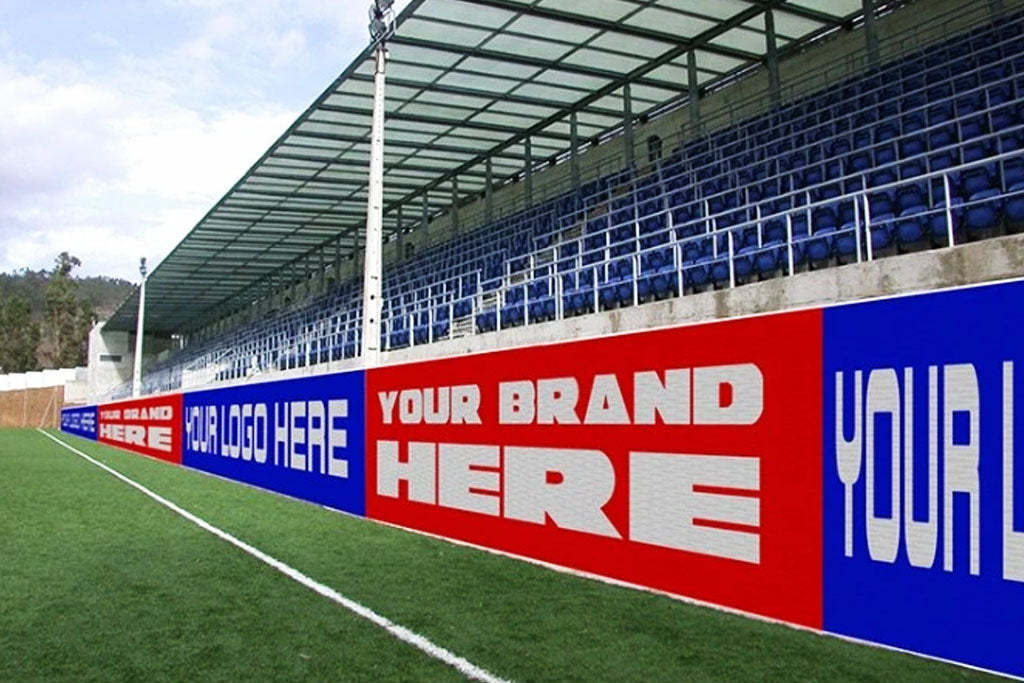

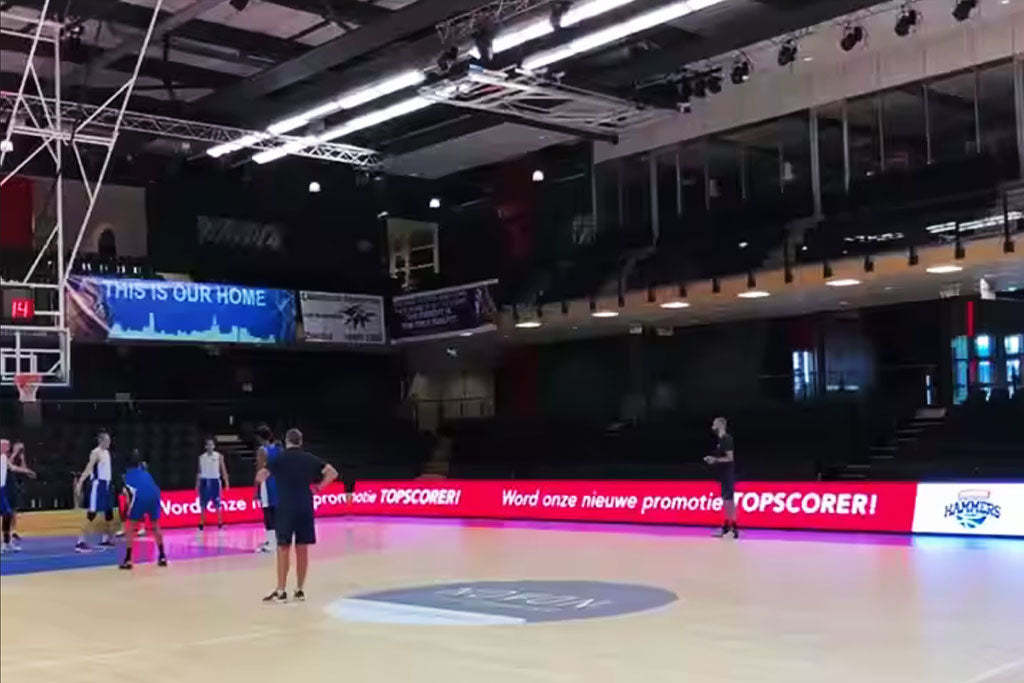

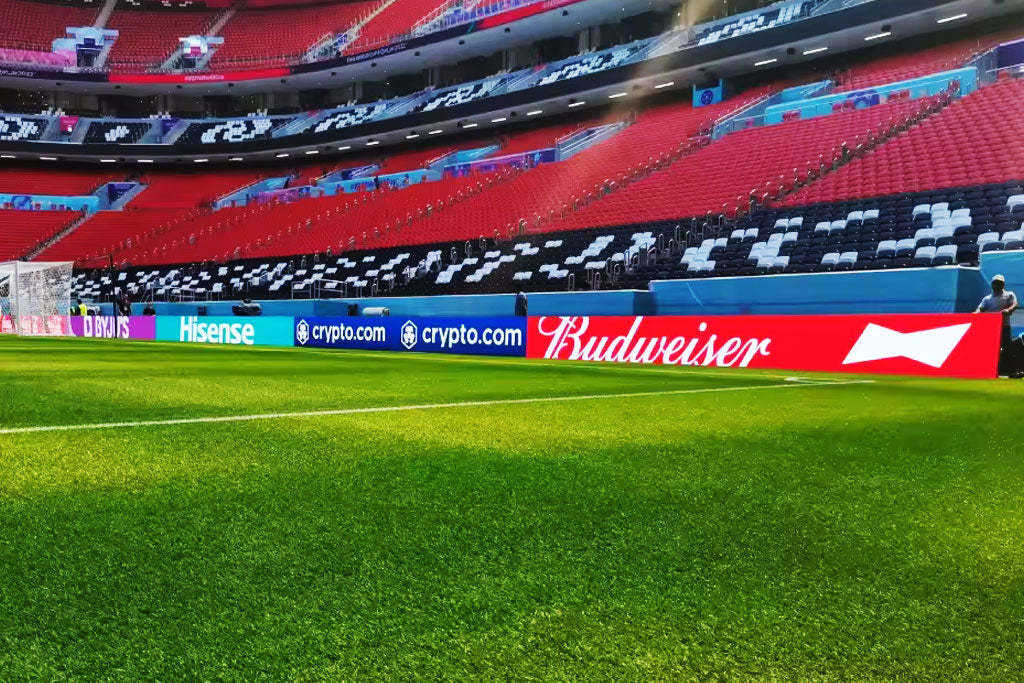

P10 Sports Stadium Perimeter LED Display Screen installations
| Advertising LED Display Screen | P6 | P8 | P10 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| LED Chips | SMD2727 | SMD2727 | SMD2727 |
| Pixel density(dots/m2) | 22477 | 15625 | 10000 |
| Driving Method | 1/6 scanning | 1/4 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 |
| Module Resolution | 48*24 | 40*20 | 32*16 |
| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 |
| Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 |
