RGBlink RMS 1516S 4K Preview Monitor LCD Monitor LED Screen Broadcast Monitor

RGBlink RMS 1516S 4K LCD Monitor

• Up to 4 pictures to display
• Zoom All
• Focus Assist
• Pixel to Pixel
• Pseudo-color
• Center Marker
• Overscan
• Ratio Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Rotation by 90° increment
• Marker Color (Red,Green,Blue,White)
• Monochrome display (Red, Green, Blue,Grey)
• Color Temperature Adjustment
• Image Freeze
• 3 Tally lighgt (Red, Green, Yellow)

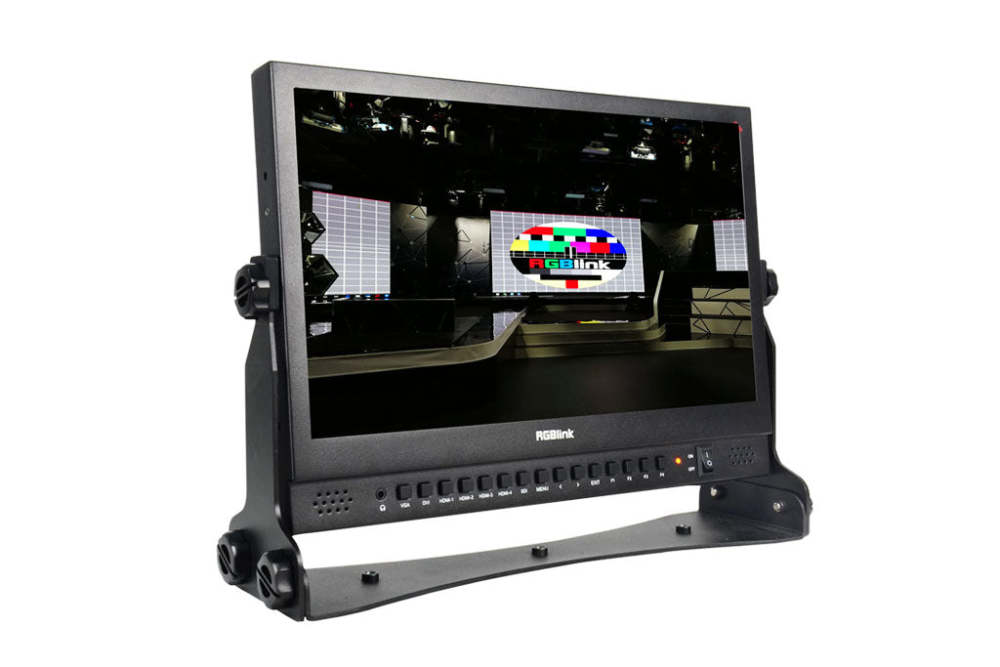

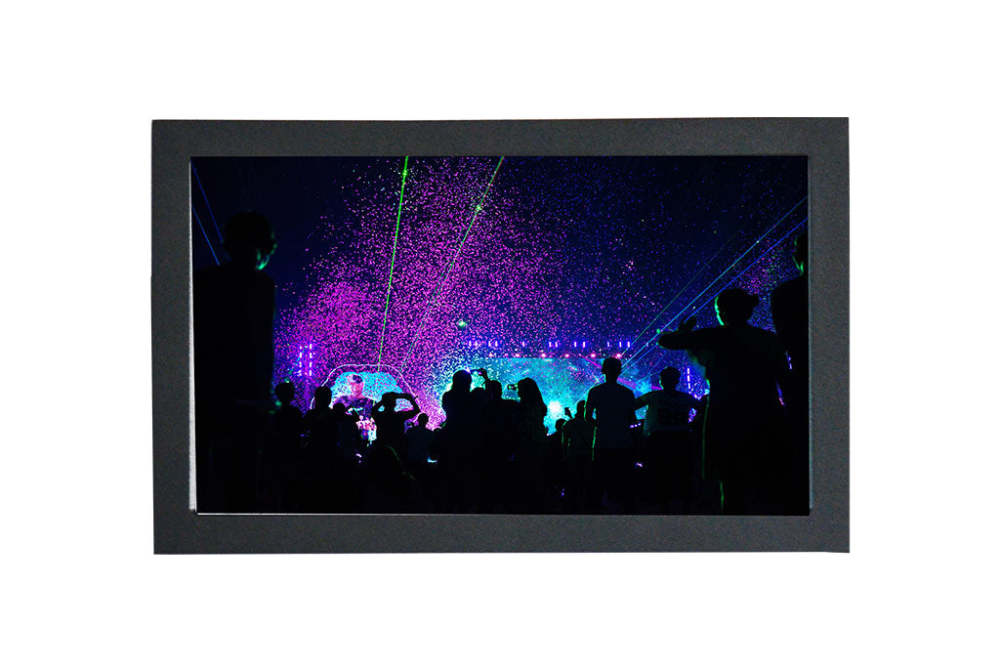

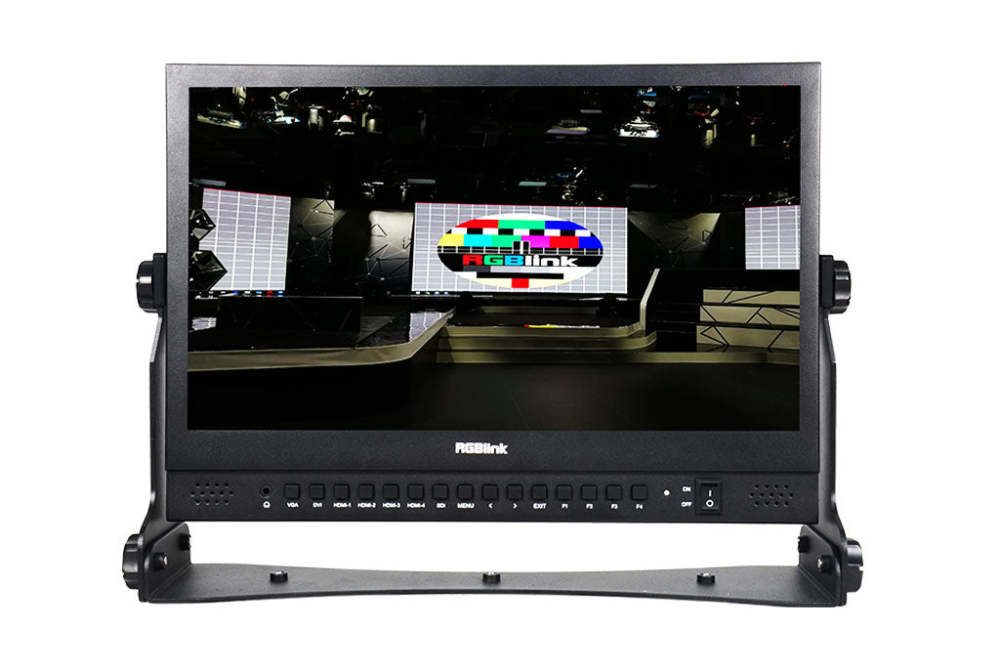

RGBlink RMS 1516S 4K Preview LCD Monitor Appearance

RGBlink RMS 1516S 4K Preview LCD Monitor Working Diagram

RGBlink RMS 1516S 4K LCD Monitor

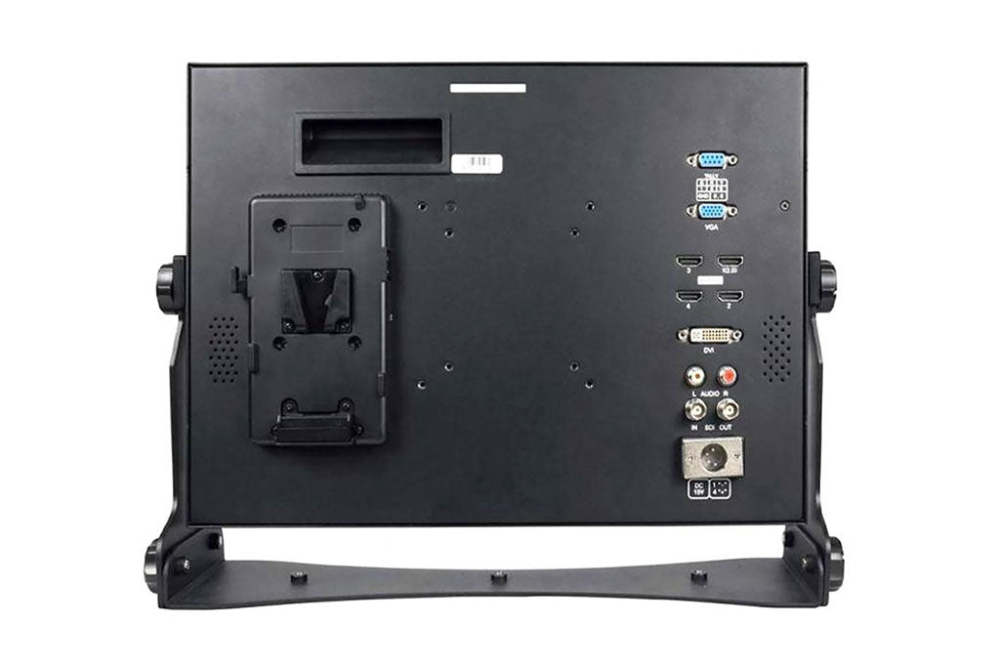

• Connectors
• Input VGA 1×DB15
• DVI 1×DVI-I
• SDI 2×BNC ( 1 In | 1 Loop)
• HDMI 4×HDMI-A
• Audio L/R 2×RCA
• Communication Tally 1×DB9
• Power 1×4Pin XLR
• Screen Size 15.6 Inch
• Native Resolution 3840x2160px
• Native Display Ratio 16：9
• Contrast 800:1
• Viewing Angle 85°/85°(L/R) 85°/85°(U/D)
• Brightness (Max) 300cd/m2
• Power Input Voltage DC 12V (via fitted universal plug-in pack)
• Max Power 18W
• Environment Temperature -10℃～50℃
• Hudmidity 10%~85%
• Physical Weight Net (Device) 2.03kg
• Dimension Net (Device) 372mm×262mm×50mm
