Rong-Electric MD200PC5 LED Displays Power Supply Features:
Input Voltage:100-240Vac 200-240Vac, 47-63Hz
Power Factor:0.50@230Vac
Leakage Current:0.30mA@230Vac
Protection Function:Input Undervoltage,Over Current,Short
Operating Temperture:-30～+60℃
Cooling Mode:Self-cooling
Insulation:I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac

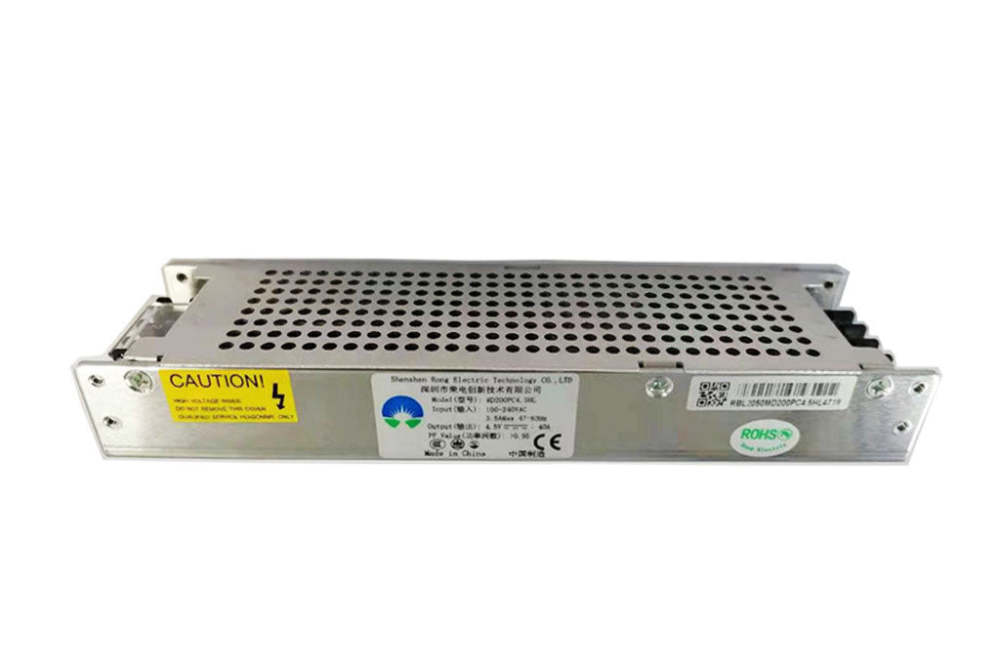

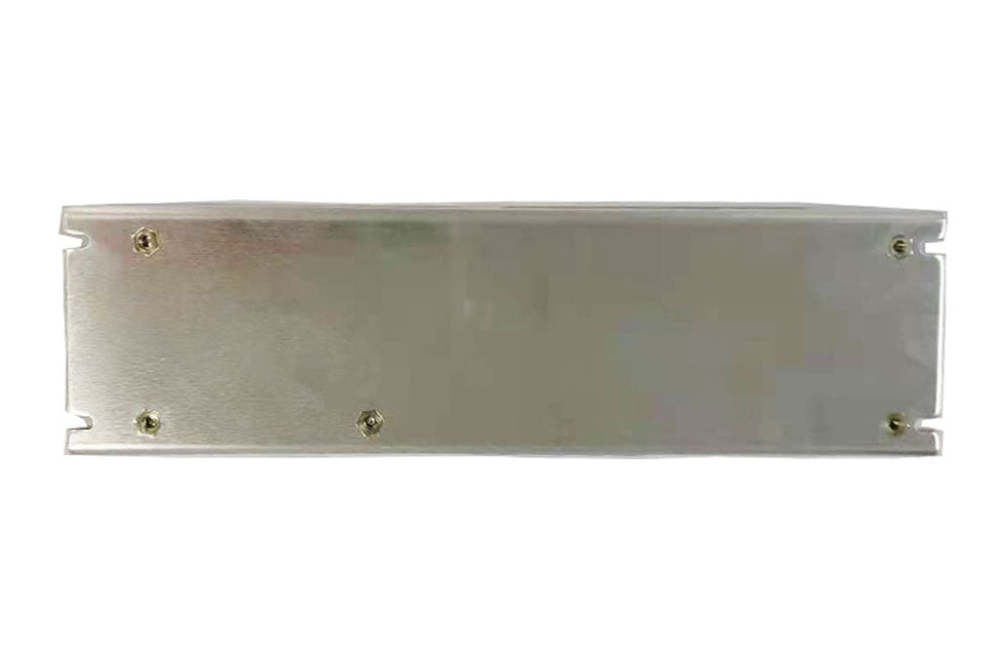

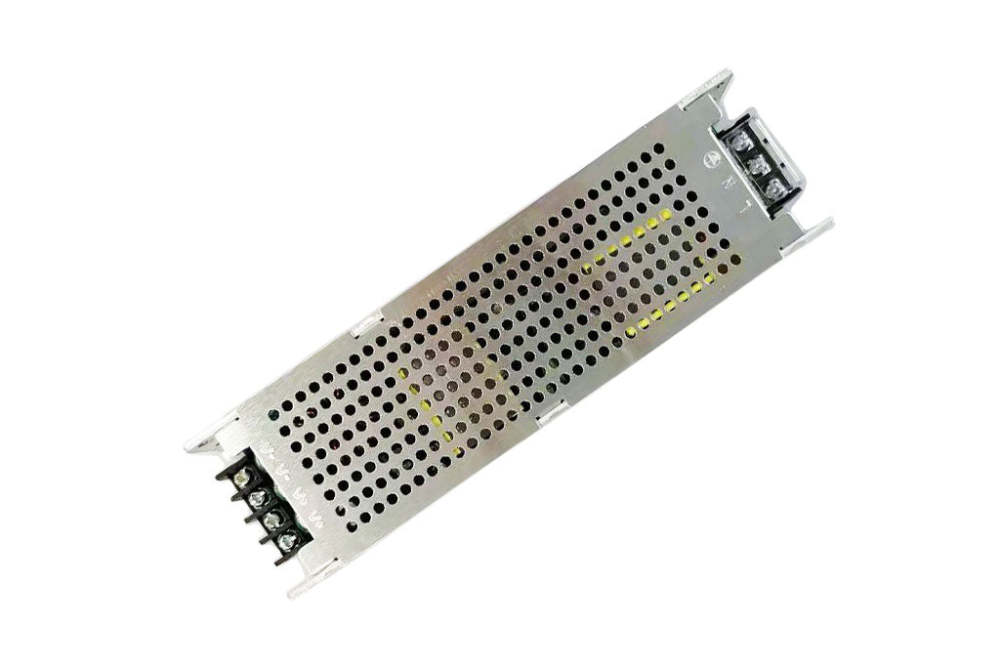

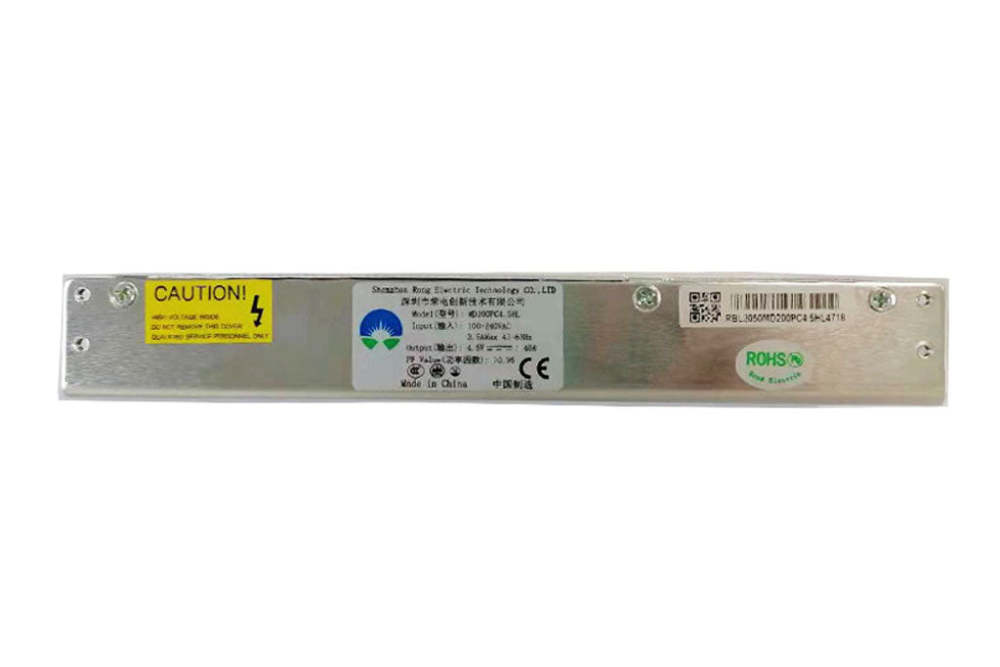

Rong-Electric MD200PC5 5V40A 200W LED Display Power Supply Parameters:
Input Voltage:90-264Vac, 47-63Hz
Output Power:200W Max
Power Factor:0.98@230Vac
Insulation:I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac
Leakage Current:0.30mA@230Vac
Protection Function:Input Overvoltage,Over Temperature,Over Load,Short,etc.
Operating Temperature:-30～+60℃
Storage Temperature:-40～+100℃
Safety Standards:GB4943,EN60950
EMC Standards:GB9254,EN55022A
Certification:CE,CCC,UL,CB
Cooling Mode:Self-cooling
Dimension:208*60*30mm
| Type Number | Type | Output Voltage | Output Current | Ripple& Noise | Effi. | Remarks |
| MD200PC5 | CV | 5V | 40A | < 150mV | 90.00% | |
| MD200PC4.5 | CV | 4.5V | 40A | < 150mV | 89.00% | |
| MD200PC4.2 | CV | 4.2V | 40A | < 150mV | 88.00% | |
| MD200PC3.8 | CV | 3.8V | 40A | < 150mV | 87.00% | |
| MD200PC3.3 | CV | 3.3V | 40A | < 150mV | 86.00% |
Futher Information:
MD200PC5
Rong-Electric MD200PC5 High Efficiency LED Screen Power Supply Specification
