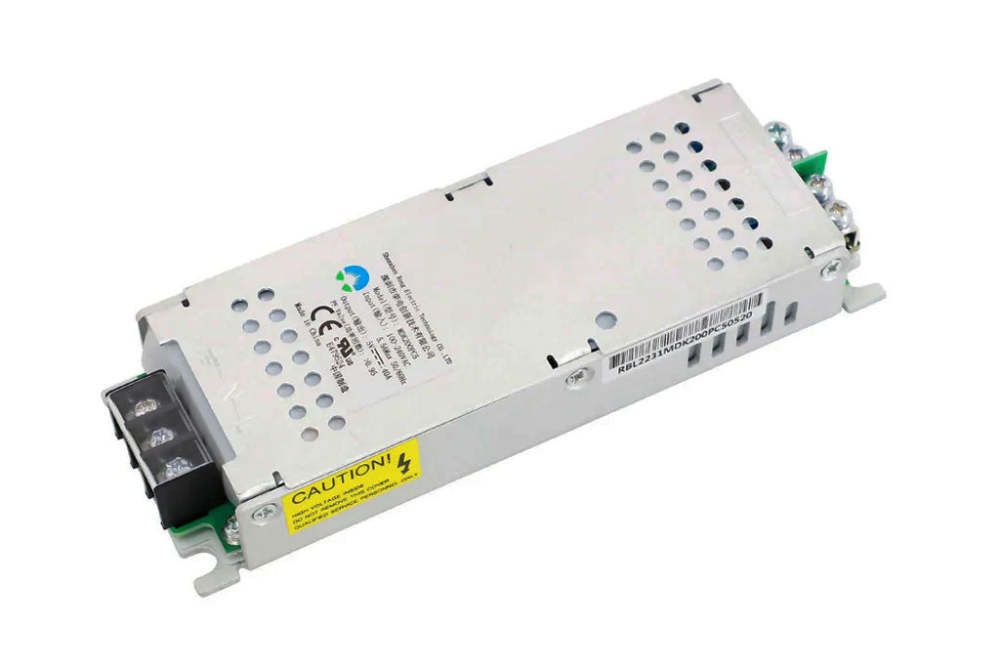

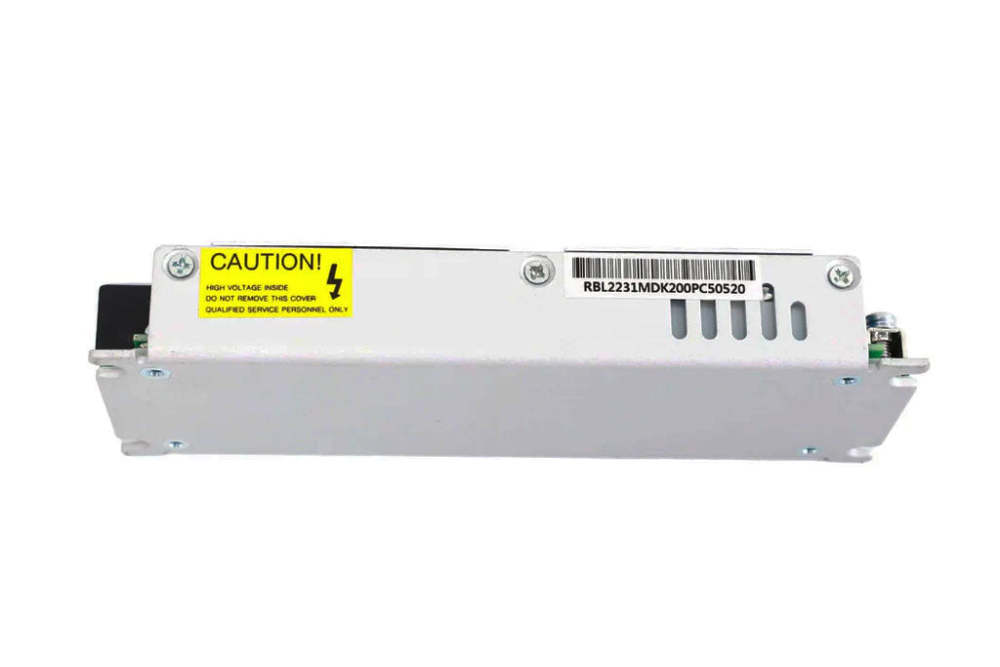

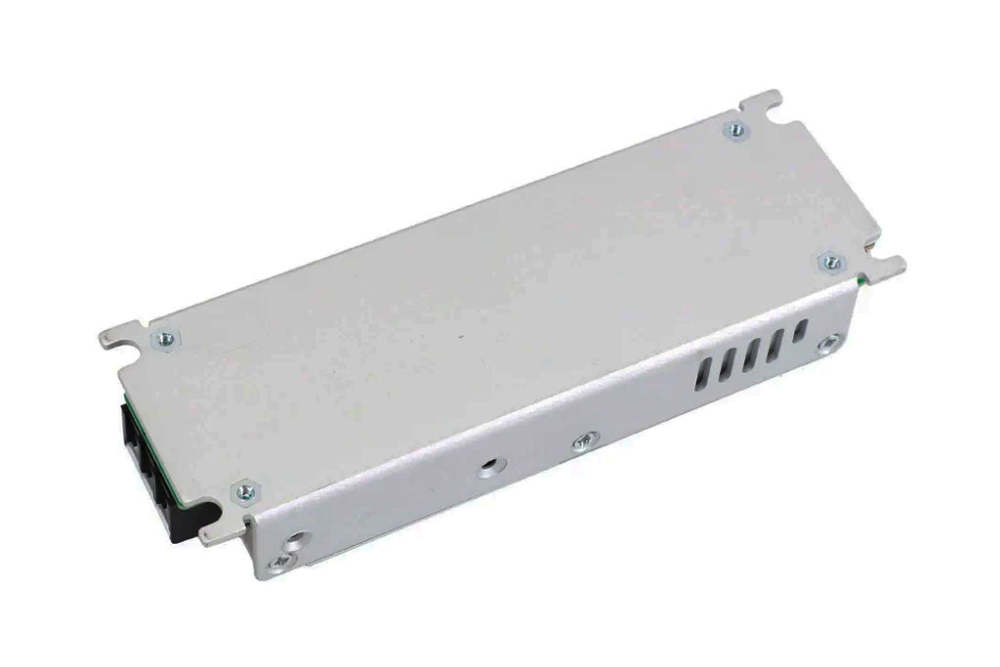

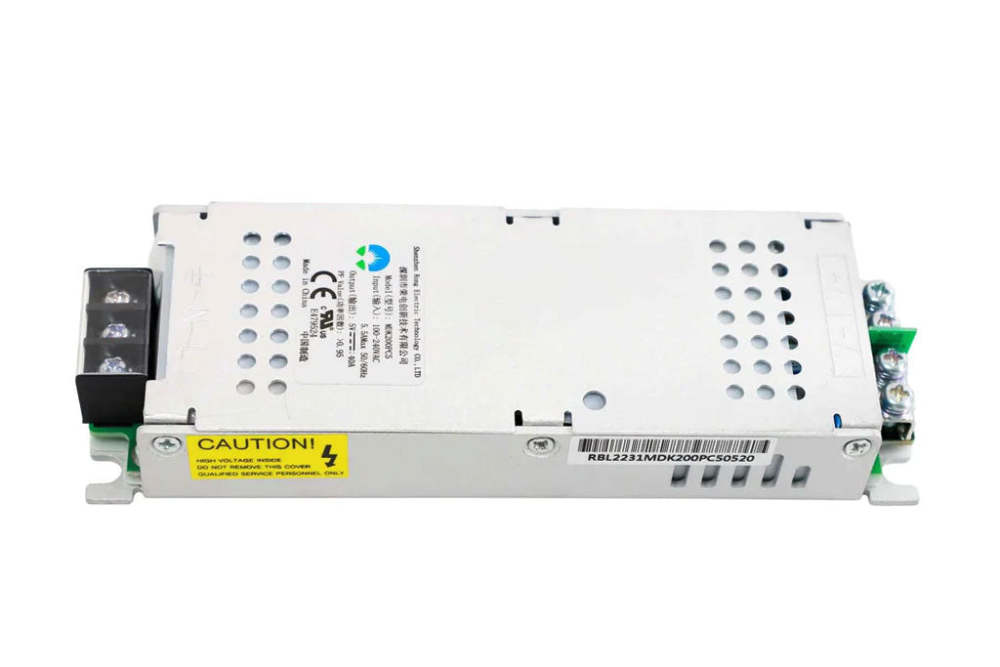

Rong-Electric MDK200PC5 LED Displays Power Supply Features:
Input Voltage:100-240Vac 200-240Vac, 47-63Hz
Power Factor:0.50@230Vac
Leakage Current:0.30mA@230Vac
Protection Function:Input Undervoltage,Over Current,Short
Operating Temperture:-30～+60℃
Cooling Mode:Self-cooling
Insulation:I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac
Rong-Electric MDK200PC5 5V40A 200W LED Display Power Supply Parameters:
Model:MDK200PC5
Output Power（W）：200
Rated Input Voltage（Vac）：100-200
Output voltage（Vdc）：+5.0
Output Current（A）：0-40
Regulation accuracy：±2%
Ripple & Noise（mVp-p）：≤200
Size:165X55X26
Futher Information:
MDK200PC5
Rong-Electric MDK200PC5 High Efficiency Power Supply For LED Screen Specification
